Aluminium Magnesium Insulation Vuas
Aluminium Magnesium Insulation Vuas, lossis AMI Vuas, yog hom khoom siv vov tsev uas muab cov khoom thaiv zoo heev. Lawv muaj nyob rau hauv ob hom, qhov yooj yim AMI Pobzeb thiab cov pobzeb AMI ntxiv. Ob hom muaj tib theem ntawm rwb thaiv tsev thiab kev tiv thaiv, nrog rau cov vuas ntxiv muab ntxiv durability.
Product Description

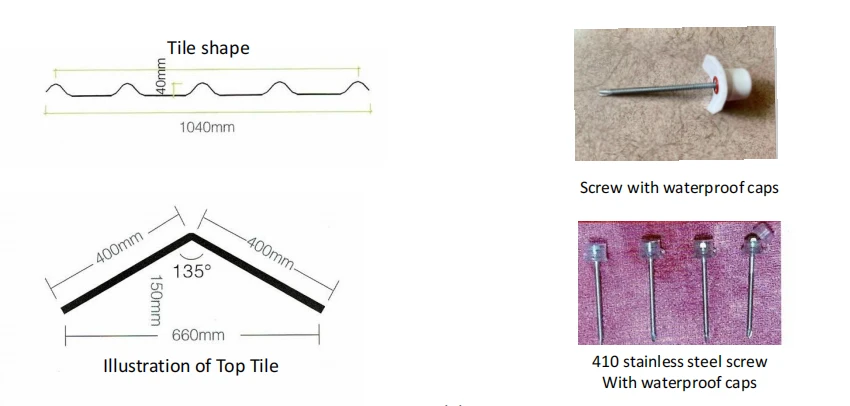

Installation Parameters (multifunctional vuas)
| Ntev: | 6,3m ;ua. tsawg dua 6.3meters tuaj yeem hloov kho. Pem hauv ntej thiab nraub qaum yog li ntawm 20-30cm (yuav tsum muaj cov hlua khi hauv qab ntawm ceg tawv, thiab cov vuas yog xauv nrog tus kheej tapping screws). |
| Dav: | 1.04 meters, 0.95 meters nrog sab laug thiab sab xis sib tshooj. |
| Thickness: | pa 3.5mm Nyhav: 7kg / sqm. |
| 3. | |
| 4.0-5 0mm lossis ntau dua tuaj yeem kho tau. | |
| Pobzeb ntug: | 3 meters nyob rau hauv ntev / pcs Lap pob qij txha yog hais txog 30cm. |
| Screw waterproof cap: | txog 2.5sets / sqm. |
| Stringer spacing standard: | 0 80-1 meter yog tsim nyog. |
| Tso cai kam rau ua ntau yam: | Dav: 1. |

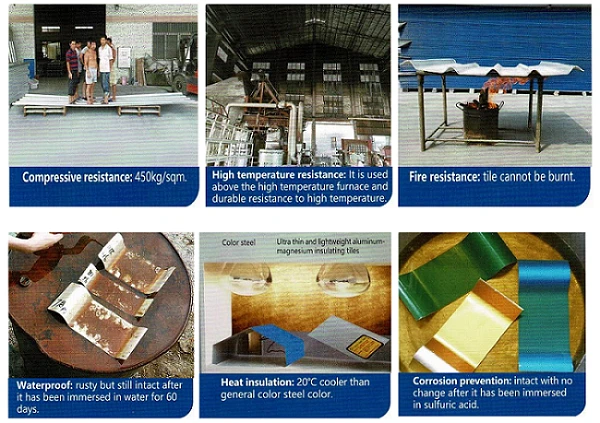

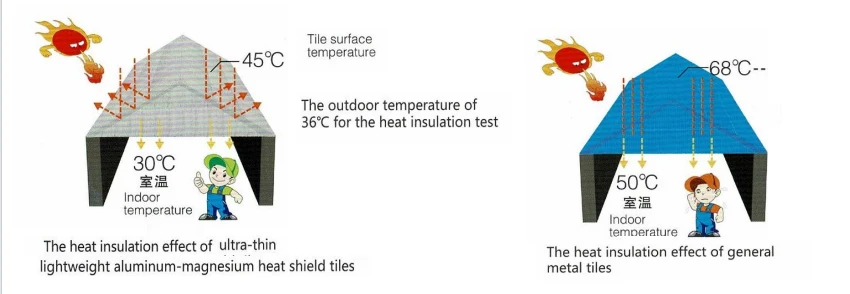

Product Performance Testing
Installation Method ntawm cov khoom-kub tus cwj pwm zoo li
Kauj ruam 1: Cov vuas nyob rau sab laug thiab sab xis ntawm qhov siab tshaj plaws ntawm lub ru tsev yuav tsum tau txuas nrog.
Kauj ruam 2: Nws raug nquahu kom kaw qhov sib txawv tom qab zawm nrog cov ntaub nplaum tsis muaj dej los yog ua npuas ncauj nplaum.
Kauj ruam 3: Npog cov nplais saum toj kawg nkaus.

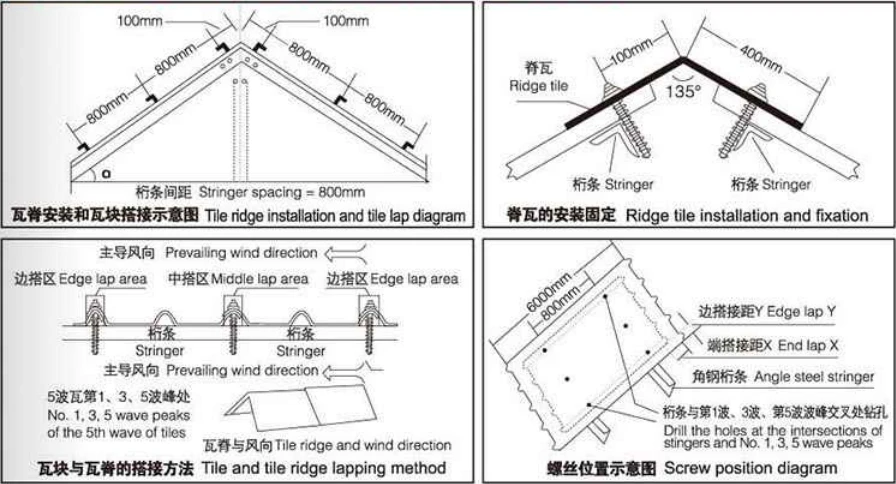

Pobzeb ridge installation (raws li qhia hauv daim duab)
Stringer installation:
Cov hlua feem ntau siv C-nqaj lossis lub kaum sab xis, xav tau cov hlua khi kom ruaj khov yam tsis muaj deformation, stringers yuav tsum tau khaws cia sib npaug, thiab qhov sib nrug ntawm lawv yuav tsum yog 800mm raws li tus qauv.
Self-tapping screws installation thiab siv:
Ntawm No. 1, 3, 5 nthwv dej saum toj kawg nkaus ntawm 5th nthwv dej ntawm cov vuas, tom qab tus kheej tapping screws yog muab nrog lub kaus mom tsis muaj dej, cov vuas yuav tsum tau kho ntawm cov hlua khi kom zoo, thiab tus kheej tapping screws yuav tsum tsis yuav tsum nruj nruj heev los yog xoob kom tsis txhob muaj qhov tawg vim qhov kev ntxhov siab tshwm sim los ntawm kev nthuav dav ntawm tshav kub thiab txias contraction.
Laying sequence ntawm cov vuas:
Kev tso cov pobzeb yuav tsum yog qhov sib txawv ntawm qhov kev coj noj coj ua nyob rau hauv lub zos perennial, uas yog, sab sab ntawm cov vuas yuav tsum rov qab mus rau qhov tseem ceeb ntawm cua. H-shaped lapping nteg ib ntus yuav tsum siv rau ntawm lub ru tsev.
Installation txoj kev ntawm cov khoom - arc zoo li tus
Taw qhia rau Insulating Pobzeb Arc:
Vim yog lub zog ntawm cov khoom tuab, hardness thiab cov khoom siv, tsis muaj cov khoom ntawm tib hom hauv kev lag luam tuaj yeem ntsia tau rau hauv cov duab nkhaus. Txhawm rau ua kom tau raws li qhov xav tau ntawm kev teeb tsa ntawm cov tuam tsev tsim kho nkhaus, peb lub tuam txhab tau pib ua tiav cov kev daws teeb meem rau kev tsim khoom thiab kev teeb tsa ntawm curved multifunctional rwb thaiv tsev ru tsev vuas tom qab xyoo ntawm kev tshawb fawb. sau qhov sib txawv ntawm cov cuab yeej technology ntawm cov khoom hauv kev lag luam!
| Yam ntxwv |  |
 |
 |
 |
 |
 |
| Resin pobzeb | Yas pobzeb | Zinc hlau pobzeb | Xim steel pobzeb | Cement, pobzeb asbestos | Peb Insulating Vuas | |
| Thaum tshav kub kub rwb thaiv tsev | Kev ua haujlwm tsis zoo ntawm cov rwb thaiv tsev kub, qhov sib txawv me me hauv tsev thiab sab nraum zoov. | Tsis zoo thermal rwb thaiv tsev, yooj yim rau kev ua cua sov. Qhov kub sib txawv ntawm sab hauv tsev thiab sab nraum zoov yog me me, thiab nws yooj yim rau hnub nyoog thiab deformation ntawm qhov kub thiab txias. | Kev ua haujlwm tsis zoo ntawm cov hluav taws xob rwb thaiv tsev, kev siv hluav taws xob yooj yim.siab dua sab hauv tsev kub dua qhov kub ntawm sab nraum zoov. | Kev ua haujlwm tsis zoo ntawm cov hluav taws xob rwb thaiv tsev, kev siv hluav taws xob yooj yim, kub hauv tsev siab dua qhov kub ntawm sab nraum zoov. | Lub cev pobzeb tuab, denending ntawm lub thickness ntawm ib co thermal rwb thaiv tsev nyhuv. | Tsawg thermal conductivity, siab thermal rwb thaiv tsev nyhuv. |
| Alkali tsis kam | Zoo alkali tsis kam | Yooj yim aging, brittleness thiab cua tawg | Cov khoom yog yooj yim rau react nrog acid thiab alkali, ua rusty, leaking thiab kho tsis tau. | Acid thiab alkali tsis kam yog nyob ntawm qhov ua tau zoo ntawm txheej txheej, thiab nws yooj yim rau acid-puag cov tshuaj tiv thaiv thiab ploj tom qab txheej txheej puas lawm. | Yooj yim aging, brittleness thiab cua tawg | Muaj zog acid thiab alkali tsis kam |
| Hluav taws kub tsis kam | Hluav taws kub tsis zoo, inflammability tsis zoo kev ruaj ntseg, yooj yim los tsim cov pa phem. | Hluav taws kub tsis zoo, inflammability tsis zoo kev ruaj ntseg, yooj yim los tsim cov pa phem. | Cov hluav taws kub tsis kam, yooj yim deformation | Zoo hluav taws kub | Cov hluav taws kub tsis zoo, yooj yim los tsim cov pa phem. | Kev tiv thaiv hluav taws zoo, cov khoom siv nws tus kheej yog hluav taws kub, thiab kev ruaj ntseg siab. |
| Environmental tiv thaiv vaj tse | Pobzeb lub cev yog nyias nrog lub suab tsis zoo, thiab nws yooj yim los ua suab nrov dua huab cua phem. | Pobzeb lub cev yog nyias nrog lub suab tsis zoo, thiab nws yooj yim los ua suab nrov dua huab cua phem. | Pobzeb lub cev yog nyias nrog lub suab tsis zoo, thiab nws yooj yim los ua suab nrov dua huab cua phem. | Pobzeb lub cev yog nyias nrog lub suab tsis zoo, thiab nws yooj yim los ua suab nrov dua huab cua phem. | Cov pobzeb tuab lub cev muaj qee lub suab nrov rwb thaiv tsev, thiab nws muaj asbestos thiab lwm yam khoom carcinogenic. | Kev txuag hluav taws xob thiab kev tiv thaiv ib puag ncig, mothproof, suab-absorbing zog nrog noncarcinogenic thiab lwm yam khoom tsis zoo. |
| Lub zog | Tsawg zog, cuam tshuam tsis kam, ua haujlwm tsis zoo, tawg yooj yim. | Tsawg zog, cuam tshuam tsis kam, ua haujlwm tsis zoo, tawg yooj yim. | Tsawg zog, zoo yoog raws, tsis zoo cuam tshuam tsis kam. | Tsawg zog, zoo yoog raws, tsis zoo cuam tshuam tsis kam. | Brittleness, yooj yim fracturing | Lub zog muaj zog, zoo toughness, tsis yooj yim rau deformation thiab tawg. |
| Cua tsis kam | Pobzeb lub cev yog nyias thiab yooj yim rau cua los ntawm cua daj cua dub. | Pobzeb lub cev yog nyias thiab yooj yim rau cua los ntawm cua daj cua dub. | Pobzeb lub cev yog nyias thiab yooj yim rau cua los ntawm cua daj cua dub. | Pobzeb lub cev yog nyias thiab yooj yim rau cua los ntawm cua daj cua dub. | Pobzeb lub cev yog tuab thiab tuaj yeem tiv taus typhoon. | Kev tiv thaiv zoo tiv thaiv snowstorm. |
| Tswv yim | Lub puab tsaig me me, ntev ntev, siab practicality. Txog 88% | Lub puab tsaig me me, ntev ntev, siab practicality. Txog 88% | Lub puab tsaig me me, ntev ntev, siab practicality. Txog 83% | Lub puab tsaig me me, ntev ntev, siab practicality. Txog 84% | Luv luv thiab ib qho specification, ntau dhau lawm, tsis zoo practicality. Txog 62% | Lap pob qij txha yog me me nrog qhov nruab nrab ntev, uas yog siv tau. Txog 88% |

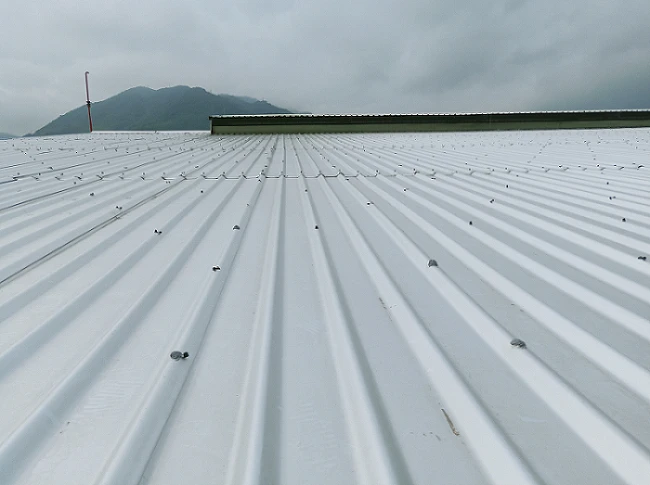

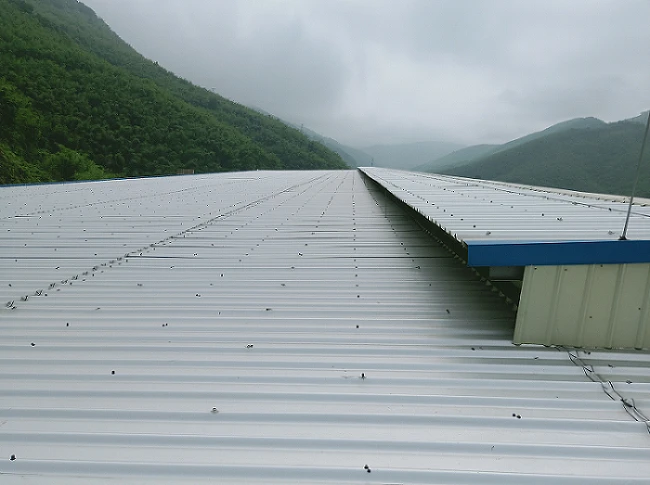

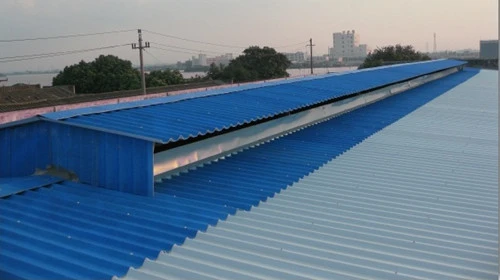

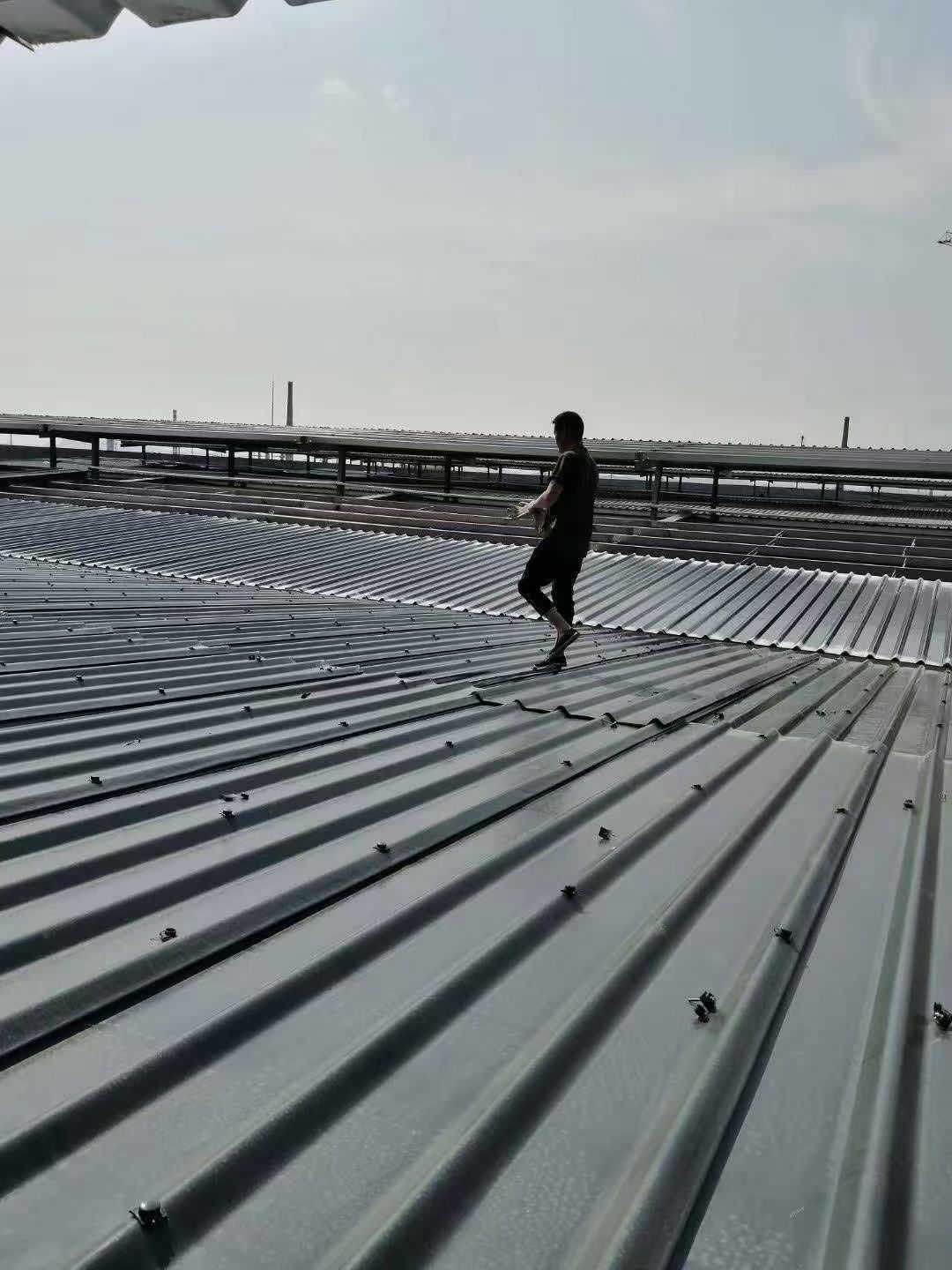

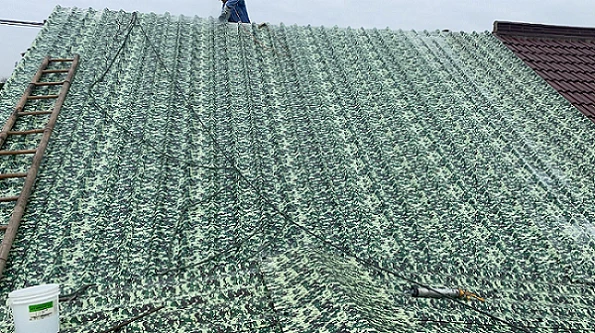

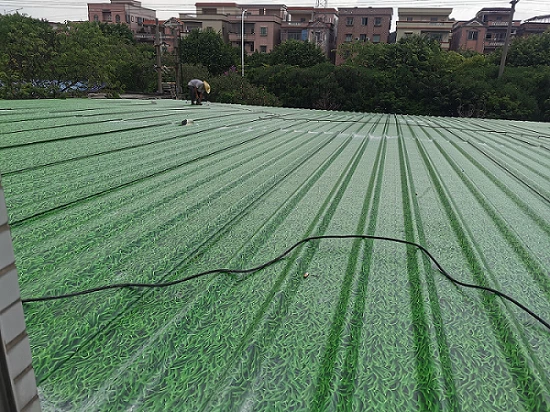

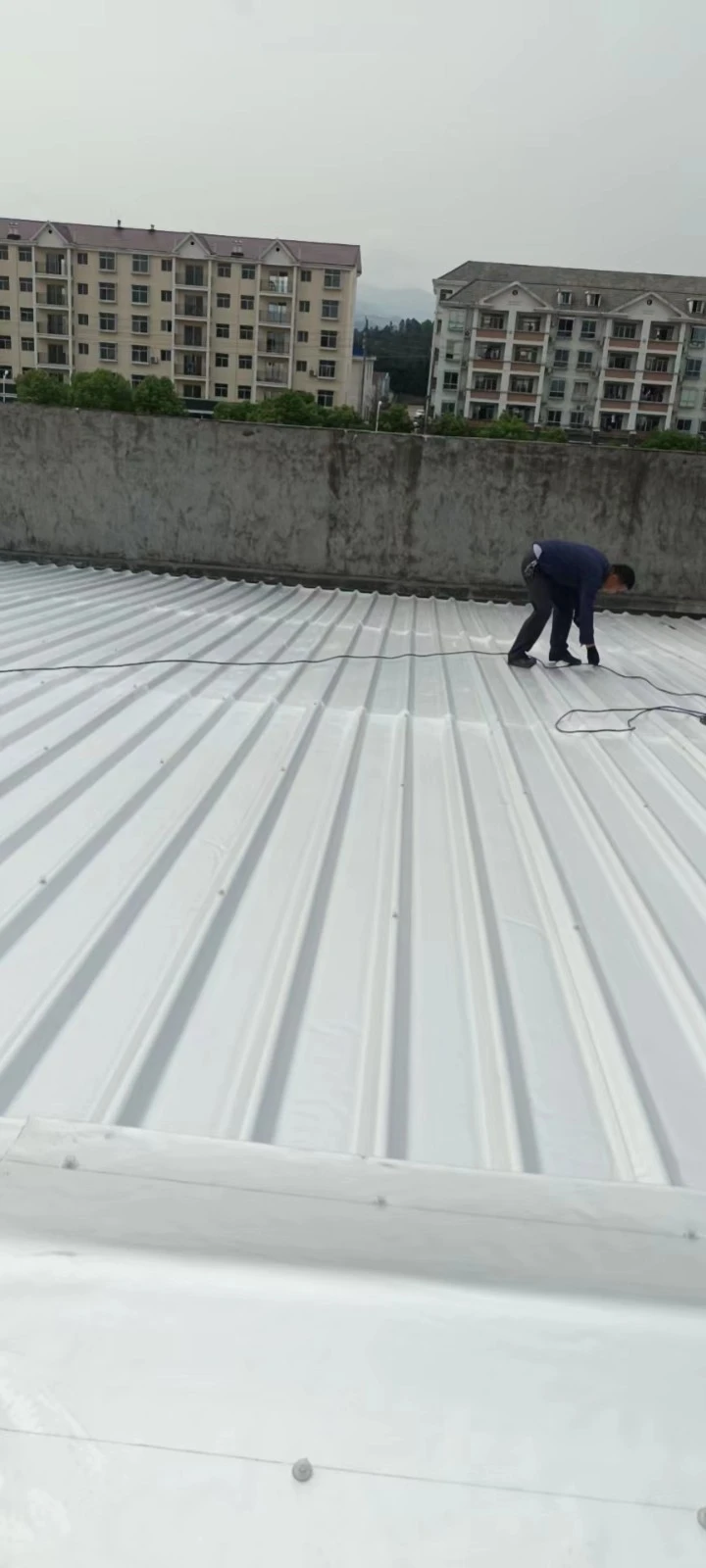

Engineering Cases
Ib qho txiaj ntsig tseem ceeb ntawm Aluminium Magnesium Insulation Vuas yog lawv cov kev ua tau zoo. Ib cag los ntawm kev rwb thaiv tsev, cov vuas muaj ntau yam ntawm lwm yam uas ua rau lawv zoo tagnrho rau ntau yam kev siv. Cov yam ntxwv no muaj xws li:
1. Kev tiv thaiv hluav taws kub thiab qib A1 tiv thaiv hluav taws
2. Corrosion-tiv taus
3. Kub-kub kuj
4. Thermal rwb thaiv tsev
5. txo suab nrov thiab suab rwb thaiv tsev
6. Kev ua haujlwm ntawm xob laim
7. Cua-resistant thiab snow-resistant
8. Ib puag ncig tus phooj ywg thiab txuag hluav taws xob
Muaj nuj nqi thiab qhov zoo
Aluminium Magnesium Insulation Vuas muaj ntau yam haujlwm thiab qhov zoo. Lawv muab kev txhim khu kev qha thermal rwb thaiv tsev, uas tuaj yeem pab txo qis kev siv hluav taws xob thiab nqi. Lawv yog lub teeb yuag thiab yooj yim rau nruab, ua rau lawv muaj kev xaiv nrov rau cov neeg tsim khoom thiab cov kws tsim vaj tsev. Cov vuas tseem muab cov suab rwb thaiv tsev zoo, ua kom tsis muaj suab nrov, thiab tiv thaiv xob laim, ua rau lawv cov khoom siv vov tsev zoo tshaj plaws rau ob qho tib si hauv tsev thiab kev lag luam.
Kev ceev faj thiab qhov tseem ceeb
Nws yog ib qho tseem ceeb uas yuav tsum ua raws li cov txheej txheem kev teeb tsa kom zoo kom ntseeg tau tias cov vuas aluminium-magnesium rwb thaiv tsev 'ntev ntev thiab kev ua haujlwm. Kev txhim kho kom zoo suav nrog kev tuav kom zoo, tso, thiab txuas, thiab lwm yam. Vim yog cov vuas 'ntev xwm txheej, nws yog ib qho tseem ceeb kom ntseeg tau tias lawv tau ruaj khov rau cov qauv. Qhov no tuaj yeem ua tiav los ntawm kev sib txuas ua ke los yog siv cov ntsia hlau thiab lwm yam fasteners.
Cov cheeb tsam thov

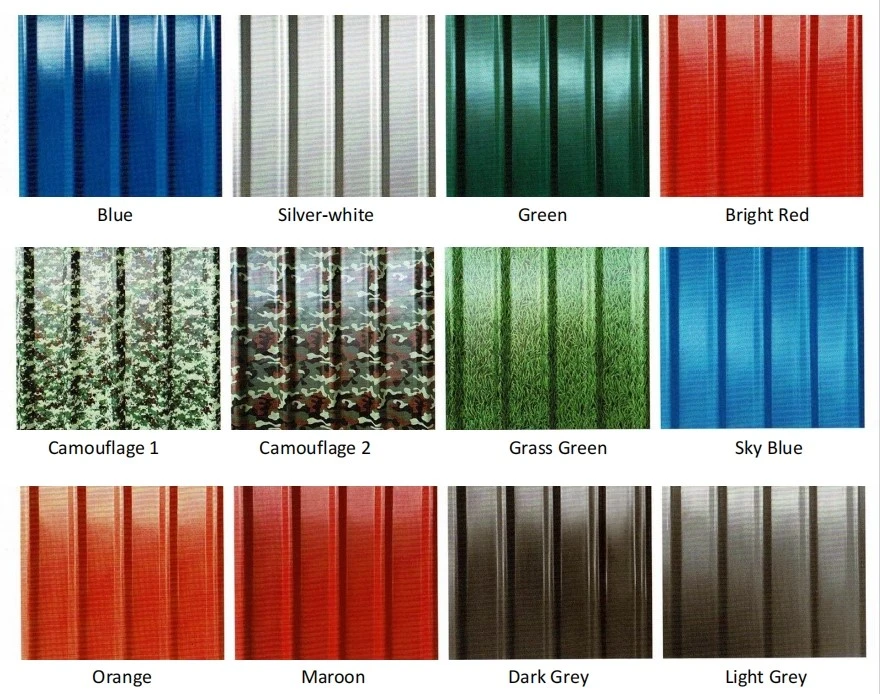

Aluminium Magnesium Insulation Vuas yog tsim rau ntau yam kev siv, nrog rau lub ru tsev, phab ntsa, thiab qab nthab. Lawv feem ntau siv nyob rau hauv kev lag luam thiab vaj tsev nyob, nrog rau cov chaw ua lag luam, thaj chaw pej xeem, thiab kev ua liaj ua teb. Cov vuas tuaj nyob rau hauv ntau yam xim thiab tsim, ua rau lawv zoo tagnrho rau kev sib piv ntau yam architectural style.
Vim li cas thiaj xaiv peb?
Thaum nws los txog rau qhov zoo thiab pheej yig Aluminium Magnesium Insulation Vuas, peb lub tuam txhab yog qhov kev xaiv zoo tshaj plaws. Tsis tsuas yog peb muab cov nqi sib tw, tab sis peb kuj muab kev pabcuam tshwj xeeb rau cov neeg siv khoom thiab kev txhawb nqa. Peb pab pawg kws tshaj lij yeej ib txwm muaj los teb cov lus nug lossis kev txhawj xeeb uas koj muaj txog peb cov khoom. Nrog peb pab, koj tuaj yeem txaus siab rau ntau yam txiaj ntsig ntawm aluminium-magnesium rwb thaiv tsev vuas, paub tias koj tau xaiv txoj cai.
