Khoom Aluminium Cladding
Cov khoom siv aluminium cladding siv 1100H24, 3003H24, 5005H24 thiab lwm cov ntaub thaiv phab ntsa tshwj xeeb ib leeg - txheej aluminium alloy panels.
Cov qauv ntawm cov ntaub thaiv phab ntsa aluminium veneer yog tsim los ntawm cov vaj huam sib luag, stiffeners thiab kaum cov lej. Qhov loj tshaj plaws workpiece loj tuaj yeem ncav cuag 8000mm × 1800mm (L × W). Cov txheej txheem siv American PPG, Valspar, AkzoNobel, KCC thiab lwm yam zoo -paub hom xim. Lub txheej yog muab faib ua ob txheej, ib txheej ci, thiab peb txheej. Ci, nws cov txheej txheem ua tau tiav mus txog AAMA2605-98 tus qauv ntawm AAMA (American Construction Manufacturing Association) thiab ASCA (American Construction Coating Association).
Pa thickness: 1.5mm / 2.0mm, 2.5mm, 3.0mm
Kev qhia tshwj xeeb: 600 * 600mm, 600 * 1200mm
Muaj ob hom aluminium veneers nyob rau hauv cov nqe lus ntawm specifications: txhuas veneers nrog ib tug tuab ntawm tsawg tshaj li 1.2 hli yog hu ua txhuas gussets (tseem hu ua txhuas square phaj), thiab txhuas veneers nrog ib tug tuab ntawm ntau tshaj 1.5 hli yog hu ua txhuas veneers. Aluminium veneer kab hlau rhuav phab ntsa yog ua los ntawm high-zoo thiab siab-lub zog aluminium alloy daim hlau. Nws cov tuab li ib txwm yog 1.5, 2.0, 2.5, 3.0MM, tus qauv yog 3003, thiab lub xeev yog H24. Nws cov qauv yog tsim los ntawm panels, stiffeners thiab fab. Lub kaum sab xis tuaj yeem tsim ncaj qha los ntawm kev khoov thiab xuas nrig ntaus lub vaj huam sib luag, lossis riveting lub kaum sab xis ntawm lub me me ntawm lub vaj huam sib luag. Lub stiffener txuas nrog lub tshuab hluav taws xob vuam ntsia hlau tom qab lub rooj tsavxwm (cov ntsia hlau ncaj qha welded nyob rau sab nraum qab ntawm lub rooj tsavxwm) ua kom nws muaj zog tag nrho, uas zoo heev txhim kho lub zog thiab rigidity ntawm aluminium veneer kab hlau rhuav phab ntsa, thiab xyuas kom meej qhov flatness nyob rau hauv ntev - siv Degree, cua thiab av qeeg tsis kam. Yog hais tias yuav tsum tau muaj suab rwb thaiv tsev, siab -efficiency suab rwb thaiv tsev thiab cov ntaub ntawv kub rwb thaiv tsev tuaj yeem ntsia tau rau hauv lub phaj txhuas.
Kev kho saum npoo
Qhov saum npoo ntawm Khoom txhuas cladding kab hlau rhuav phab ntsa yog feem ntau kho nrog fluorocarbon txau tom qab pretreatment xws li chromization. Polyvinylidene fluoride resin (KANAR500) rau fluorocarbon pleev xim rau topcoat thiab kua roj vanish. Feem ntau muab faib ua ob txheej, peb txheej lossis plaub txheej. Fluorocarbon txheej muaj kev tiv thaiv zoo corrosion thiab huab cua tsis kam, tuaj yeem tiv taus cov kua qaub los nag, tshuaj tsuag ntsev thiab ntau yam pa phem, muaj qhov txias thiab kub tsis kam, tuaj yeem tiv taus hluav taws xob ultraviolet, thiab tuaj yeem tuav tau ntev - xim thiab tsis yog -chalking. , kav ntev. Xaiv lub siab-cov fluorocarbon coatings zoo los ntawm lub ntiaj teb- nto moo fluorocarbon coatings thiab coatings manufacturers xws li PPG, DNT, AKZO, NIPPON, thiab lwm yam, nrog ntau yam xim. Cov neeg siv khoom tuaj yeem xaiv ncaj qha lossis muab cov qauv xim raws li cov xim palette muab los ntawm cov chaw tsim khoom.
Nta
1. Lub teeb yuag, zoo rigidity thiab siab zog . 3.0mm tuab aluminium phaj hnyav 8kg ib square meter, thiab nws tensile zog yog 100-280n / mm2
2. Zoo huab cua tsis kam thiab corrosion kuj. PVDF fluorocarbon xim siv kynar-500 thiab hylur500 raws li cov khoom siv hauv paus tuaj yeem kav ntev txog 25 xyoos.
3. Kev ua haujlwm zoo. Lub phaj txhuas tuaj yeem ua tiav rau hauv ntau yam duab geometric nyuaj xws li dav hlau, arc thiab kheej kheej nto los ntawm kev siv cov txheej txheem ua ntej thiab tom qab ntawd pleev xim.
4. Uniform txheej thiab ntau yam xim. Kev siv tshuab electrostatic siab heev ua rau cov xim thiab cov phaj txhuas ua tib zoo, cov xim muaj ntau haiv neeg, thiab kev xaiv loj.
5. Tsis yooj yim rau stain, yooj yim los ntxuav thiab tswj. Qhov tsis yog -adhesiveness ntawm cov fluorine txheej zaj duab xis ua rau nws nyuaj rau cov kab mob tsis zoo mus rau ntawm qhov chaw, thiab nws muaj kev huv zoo.
6. Yooj yim thiab ceev installation thiab kev tsim kho. Aluminium phaj yog tsim nyob rau hauv lub Hoobkas, thiab qhov chaw tsim kho tsis tas yuav raug txiav, thiab nws tuaj yeem kho tau ntawm tus ncej.
7. Nws tuaj yeem siv tau thiab rov siv dua, uas yog qhov zoo rau kev tiv thaiv ib puag ncig. Aluminium phaj tuaj yeem siv tau 100% rov ua dua tshiab, uas txawv ntawm cov khoom siv kho kom zoo nkauj xws li iav, pob zeb, ceramics, thiab txhuas- cov vaj huam sib luag yas, thiab muaj qhov seem seem.

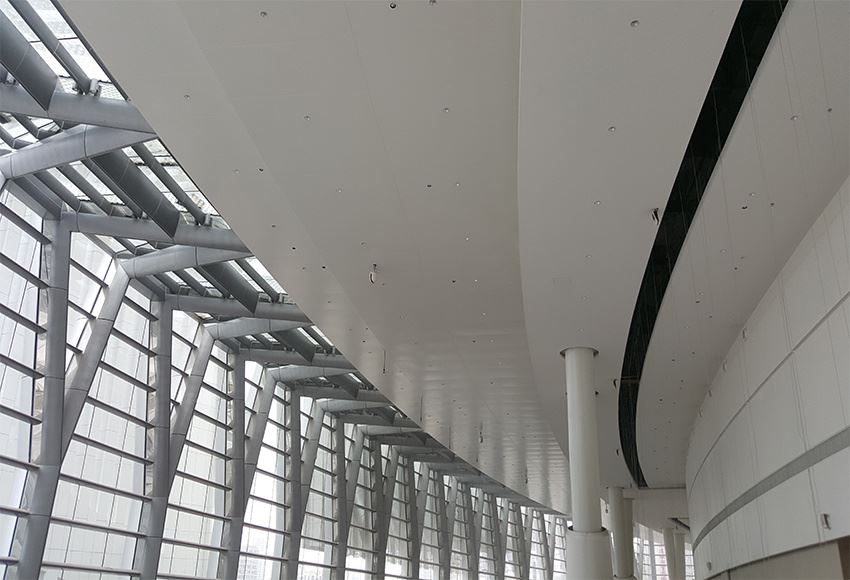

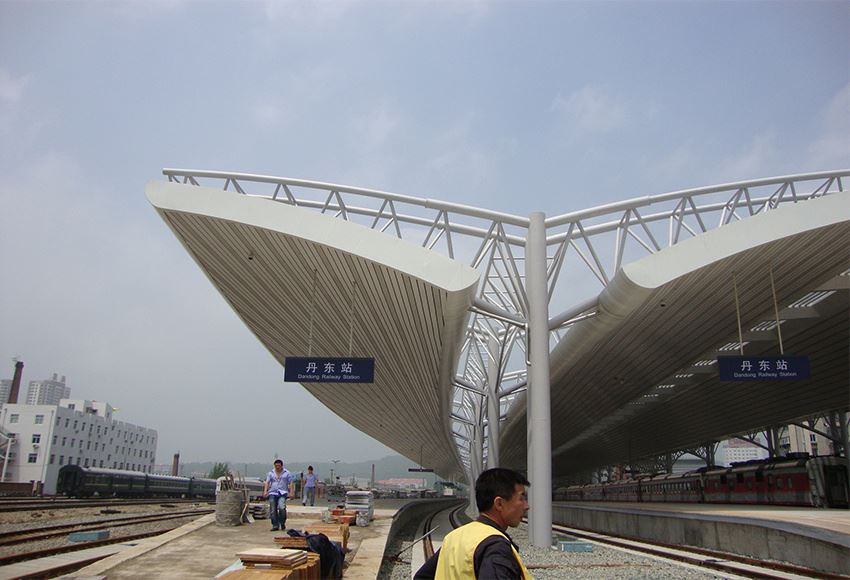

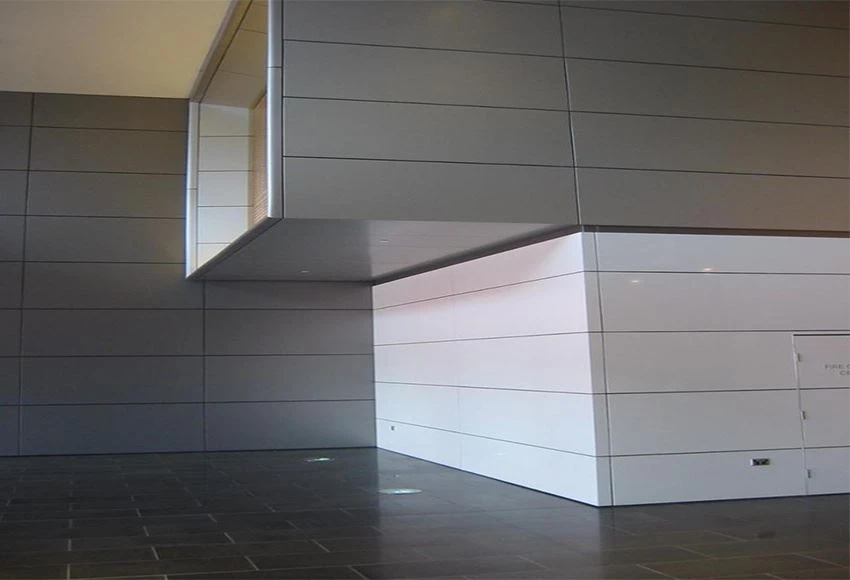

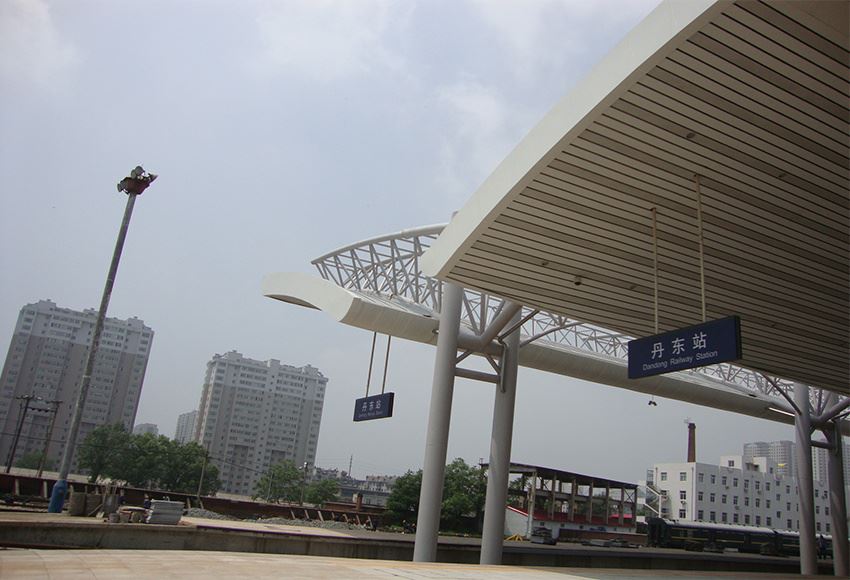

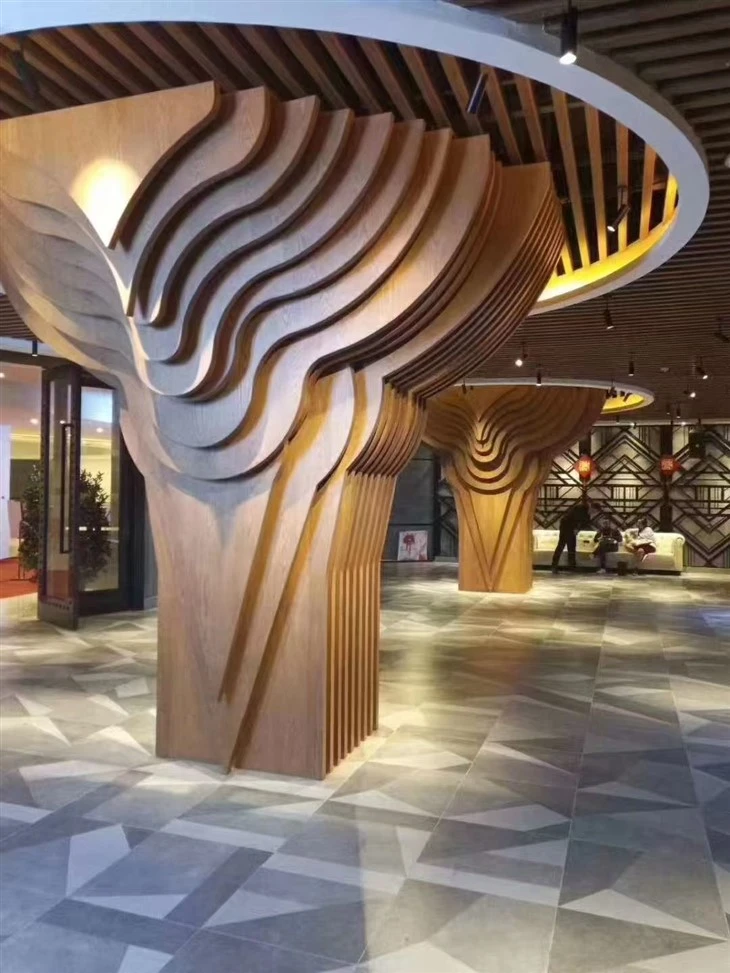

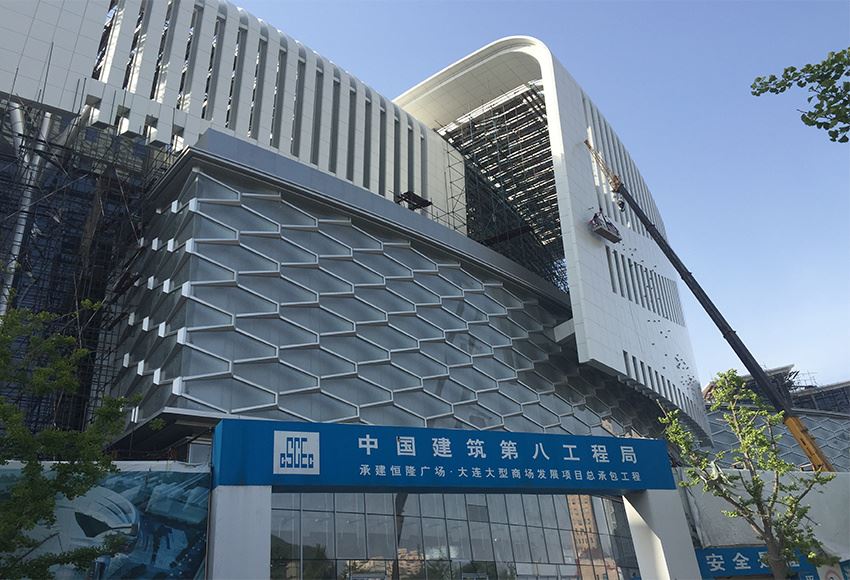

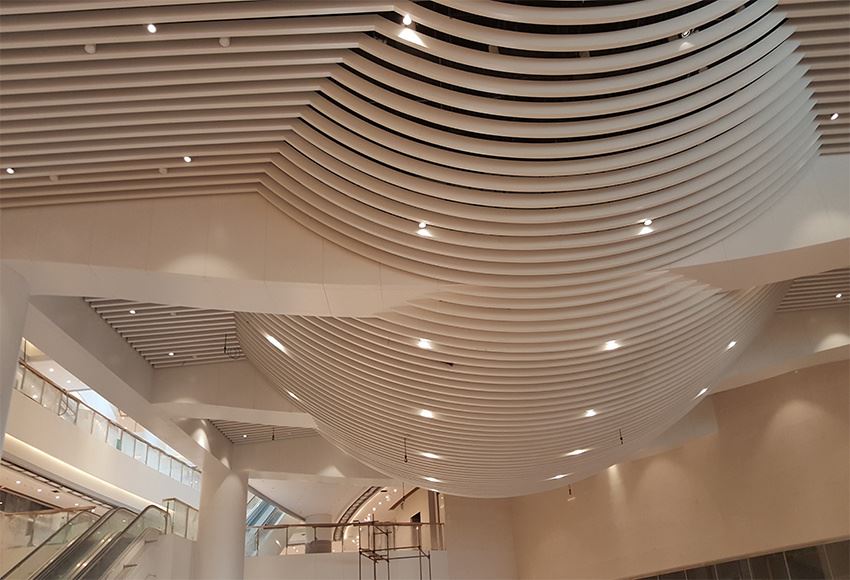

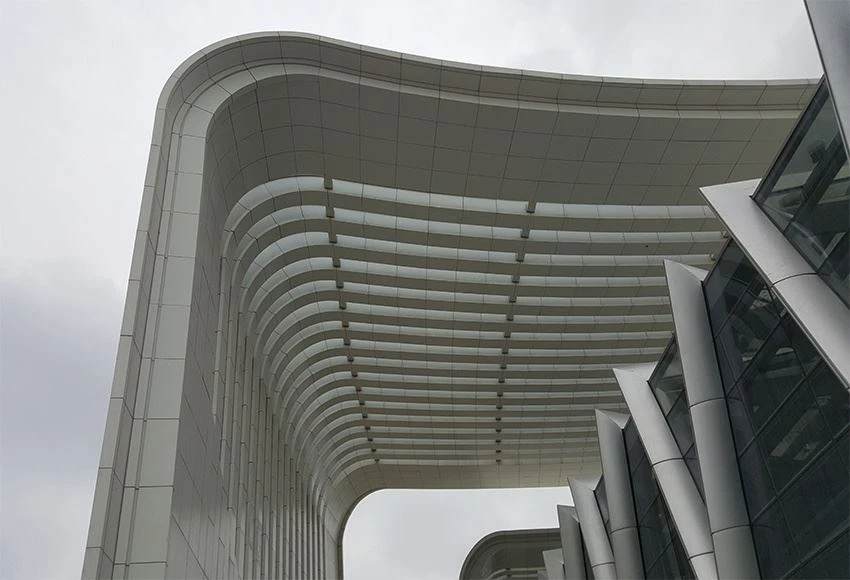

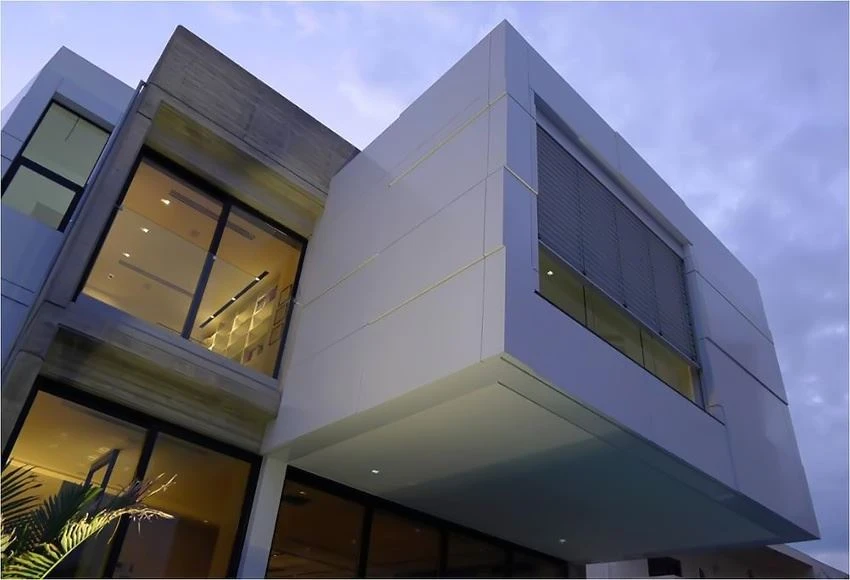

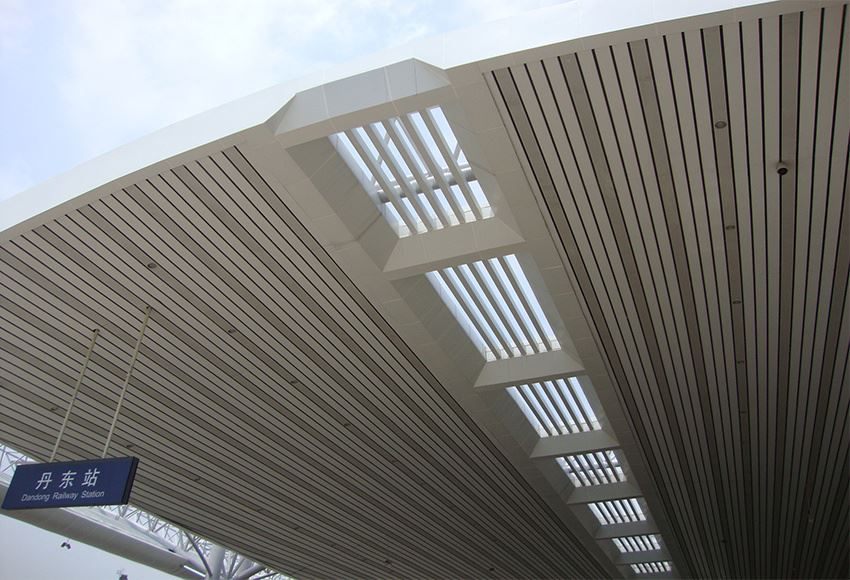

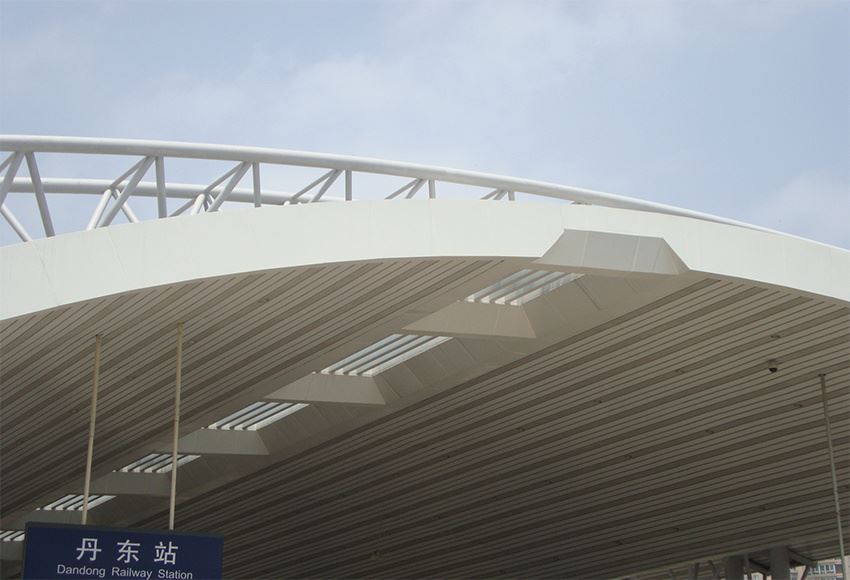

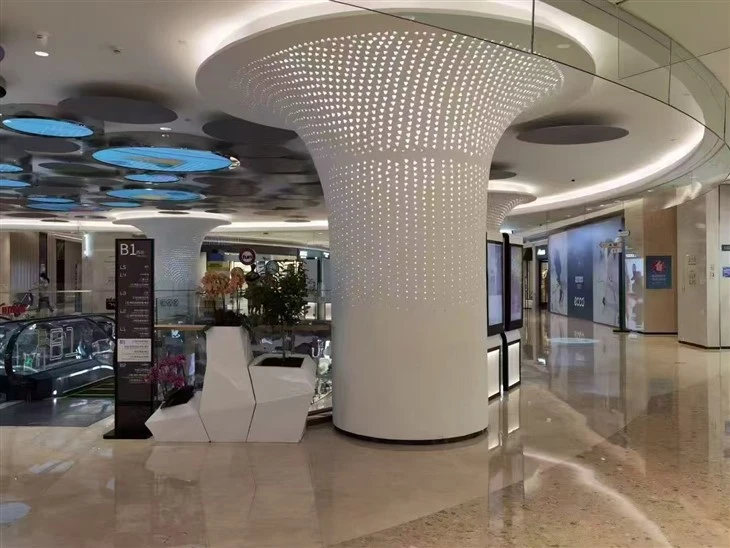

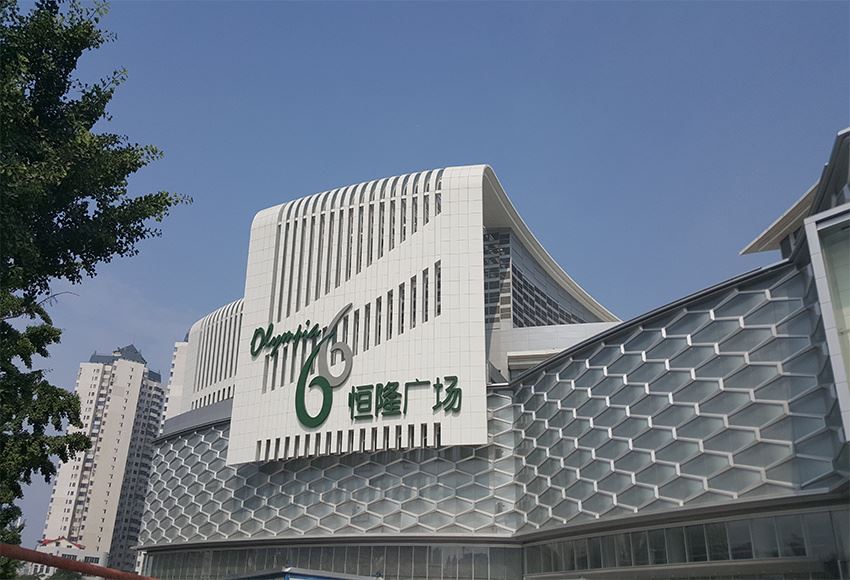

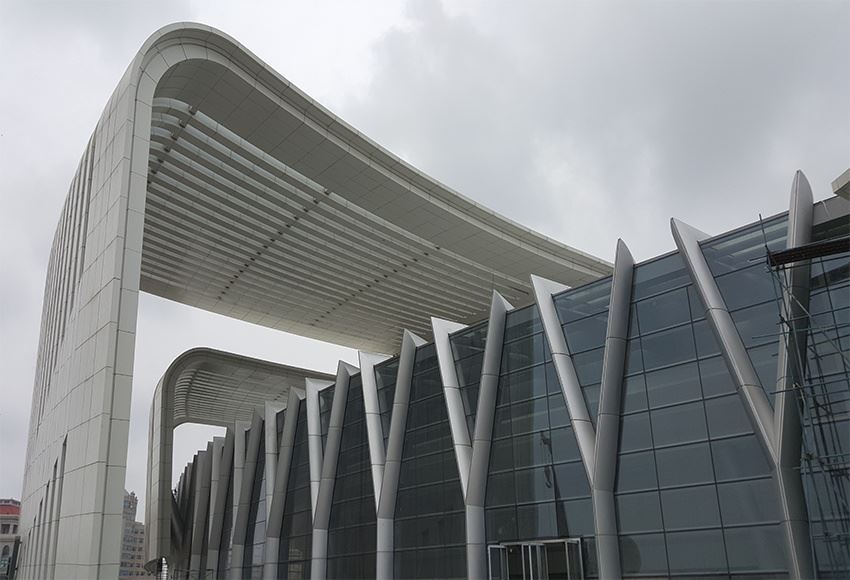

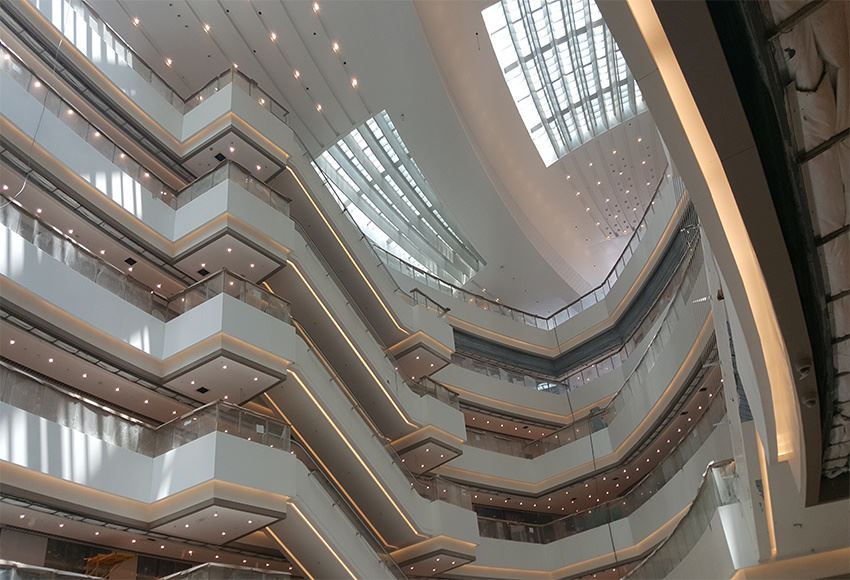

Case Show
FAQ
Q1. Qhov kev txiav txim yam tsawg kawg nkaus yog dab tsi?
Feem ntau 300 ~ 500 square metres / ib qhov tshwj xeeb, tab sis thaum kawg nws nyob ntawm qhov loj, xim, nto qauv koj xav tau.
Peb yuav sim peb qhov zoo tshaj plaws los txhawb koj qhov kev txiav txim thawj zaug kev lag luam.
Q2. Koj cov nqe lus them nqi yog dab tsi?
T / T 30% tso nyiaj ua ntej; qhov nyiaj tshuav sib npaug tiv thaiv daim B / L.
Q3. Yuav ua li cas txog koj lub sijhawm xa khoom?
Feem ntau, nws yuav nyob rau hauv 2 lub lis piam tom qab tau txais koj cov nyiaj them siab tshaj.
Lub sijhawm xa khoom tshwj xeeb nyob ntawm cov khoom thiab qhov ntau ntawm koj qhov kev txiav txim.
Q4. Koj puas tuaj yeem muab cov qauv dawb ntawm cov khoom txhuas cladding?
Yog lawm, peb tuaj yeem muab cov qauv coj mus kuaj dawb, thiab peb tuaj yeem xa peb cov xim me me rau koj los kuaj xyuas,
txais tos hu rau peb kom kuaj dawb!
Q5. Koj puas tuaj yeem tsim raws li cov qauv?
Yog lawm, peb tuaj yeem tsim los ntawm koj cov qauv lossis cov duab kos duab.
Peb tau tsim cov khoom raws li peb cov neeg siv khoom cov qauv lossis kos duab rau ntau xyoo.
Thov thiab txais tos xa koj cov qauv / qauv rau peb los xyuas thiab tsocai!
Q6. Dab tsi yog koj warranty rau koj cov khoom?
Feem ntau rau PVDF txheej yog 15 ~ 20 Xyoo, rau PE txheej yog 5 ~ 7 Xyoos.
