Name: Customized Frameless viav vias iav qhov rooj Manufacturers Hoobkas hauv Suav teb
Brand: Foshan Ivy Tsev Khoom Co., Ltd
SKU: 167786720

Khoom Paub meej

Aluminium Profiles	Aluminium	ALU Phab ntsa Thickness	Nto Finishing thiab Xim
		2. 0mm	Anodized, Sliver & Bronze
			Hmoov Txheej
			PVDF
	Nrog thermal so aluminium system tsim rau ntau lub zog txuag muaj nuj nqi
iav	Hom	Thickness	Xim
	Float iav	Ib leeg: 8mm -12mm, Ob chav Glazing (Nrog 6A / 9A / 12A / 27A qhov chaw)	ntshiab / super ntshiab / tinted xiav / ntsuab / kas fes xim av / grey
	Insulated ob iav
	Insulated triple iav
	Reflective iav
	Low-E iav
	Tempered iav
	Laminated iav
	Customized kos duab iav
Kho vajtse	Zoo siab, ua nyob rau hauv Tuam Tshoj ntawm paub zoo hom / ua nyob rau hauv lub teb chaws Yelemees
Khoom siv	Siv EPDM sealant roj hmab
	Stainless hlau 304 # accessories.
Txuj kev tsim khoom	Raws li lub khw kos duab uas tau pom zoo los ntawm tus neeg yuav khoom

Dab tsi yog qhov zoo ntawm lub qhov rooj iav frameless viav vias?

Frameless viav vias iav qhov rooj yog yuav luag tag nrho pob tshab, yog li nws muaj teeb pom kev zoo thiab tuaj yeem siv rau hauv kev sib xyaw ua ke. Feem ntau siv hauv khw malls, tsev so, chaw ua haujlwm thiab lwm qhov chaw.

Yuav ua li cas rau nruab?

Ua ntej, kho tus pin positioning ntawm lub nqaj ntawm lub qhov rooj ncej thiab siv nws tus kheej hloov ntsia hlau los kho lub dav hlau ntawm lub nqaj los ntawm 1-2mm.

Kauj ruam thib ob, kho lub qhov rooj iav qhov rooj ntawm lub qhov rooj tsis muaj qhov rooj viav vias iav, ua kom lub qhov rooj ntawm qhov sib txuas ntawm tus pin txuas nyob rau hauv qis crosspiece ntawm lub qhov rooj nplooj nrog lub rotating tus pin ncej ntawm pem teb caij nplooj ntoos hlav, thiab tig lub qhov rooj nplooj mus rau lub tes tsho. qhov chaw ntawm tus pin ncej.

Kauj ruam 3: coj tus pin ncej raws li lub axis, tig lub qhov rooj sash mus rau 90 degrees (nco ntsoov tias lub qhov rooj nplooj yuav tsum ncaj thaum tig), kom lub qhov rooj sash thiab beam ntawm lub qhov rooj ncej tsim ib lub kaum sab xis. Nyob rau lub sijhawm no, lub qhov ntawm qhov sib txuas ntawm qhov sib txuas ntawm lub qhov rooj ntawm lub qhov rooj tuaj yeem ua raws li tus pin positioning ntawm lub nqaj ntawm lub qhov rooj, thiab tus pin positioning tuaj yeem hloov kho thiab muab tso rau hauv lub qhov txuas. daim ntawm tus pin rotating ntawm crosspiece ntawm lub qhov rooj nplooj txog 15 hli.

Nyob rau hauv no txoj kev, lub frameless viav vias iav qhov rooj yog tiav, ruaj khov heev.

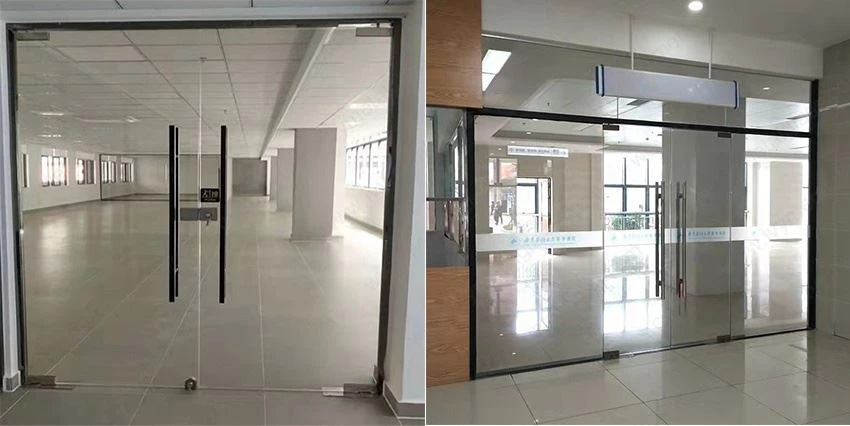

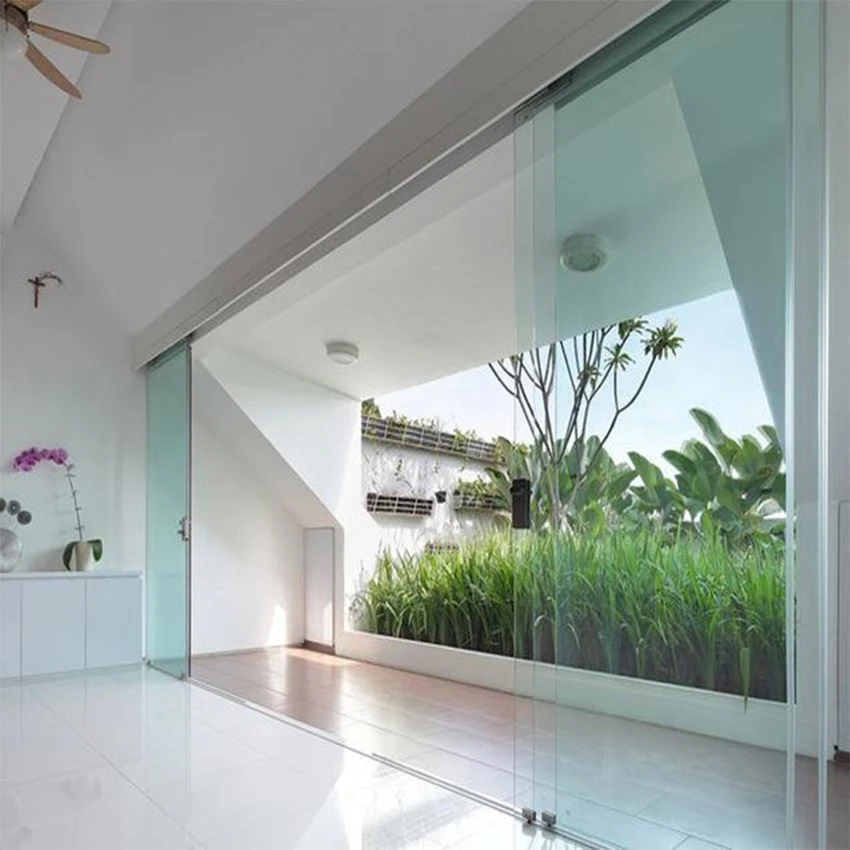

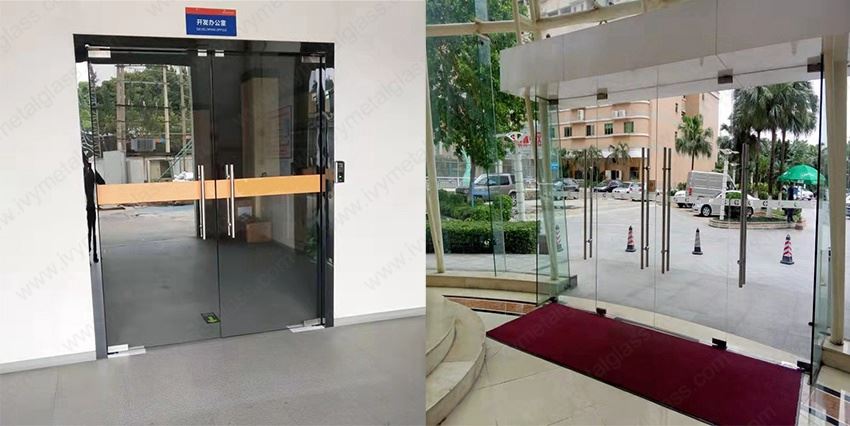

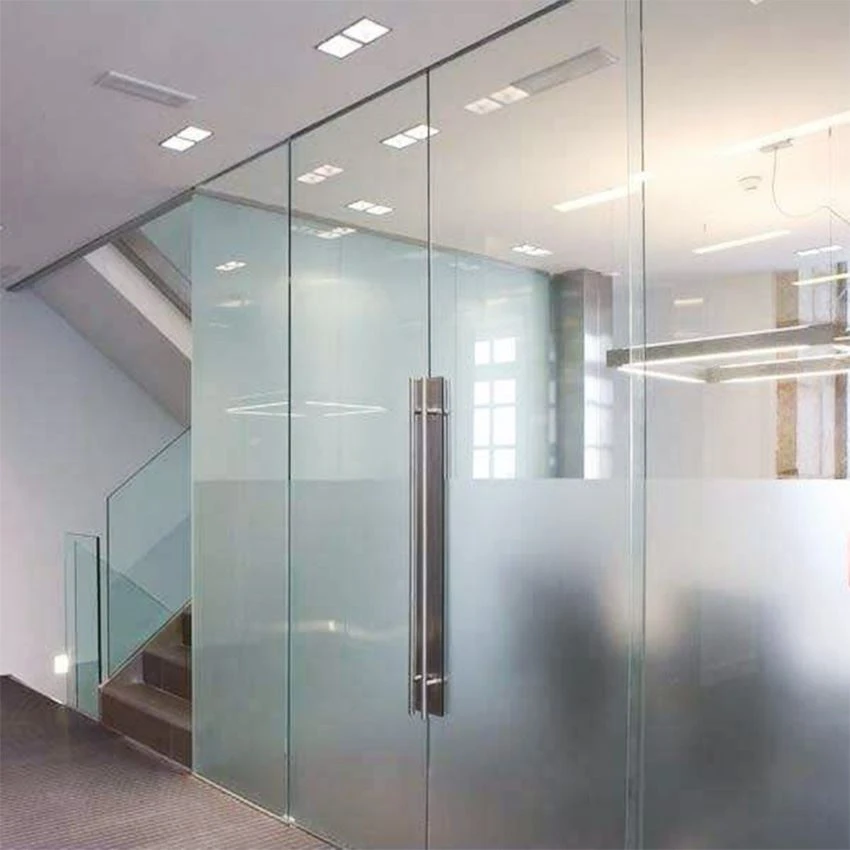

Case Show

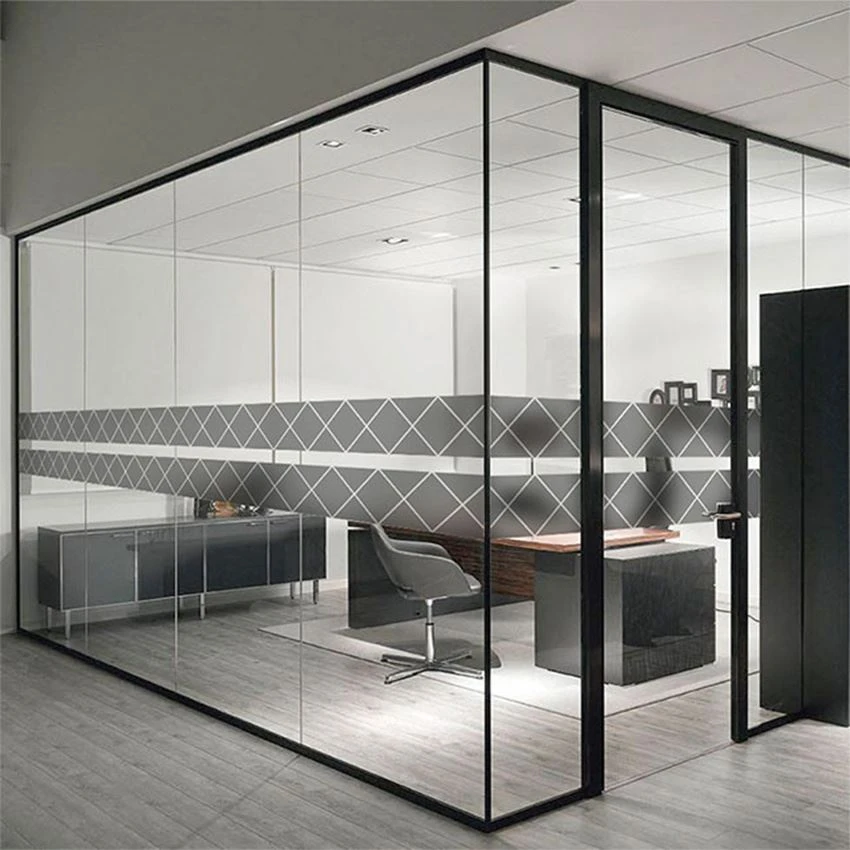

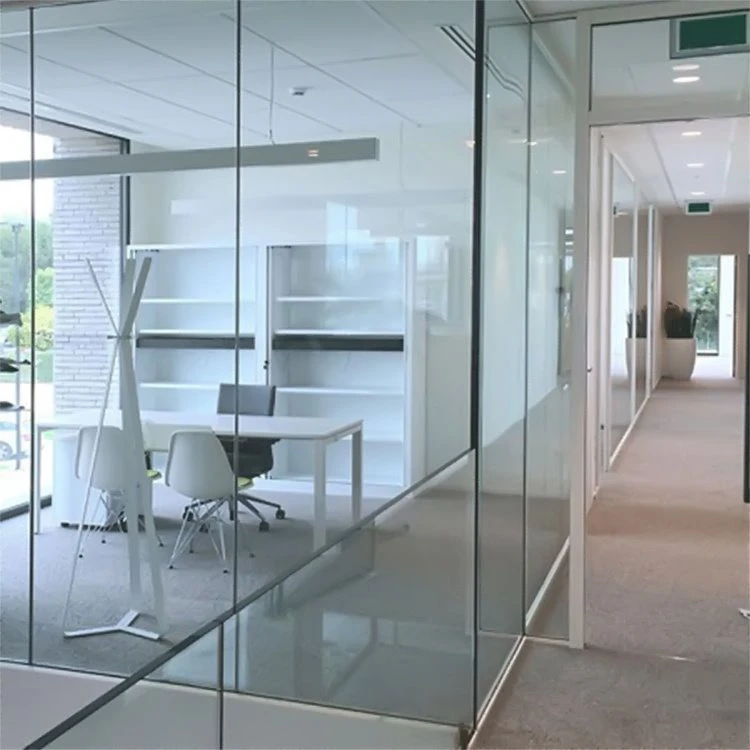

Thaum lub architecture ntawm ib lub tsev txhawb nqa lightness thiab qhov chaw thiab kev ua haujlwm ntawm chav tsev yuav tsum tau ib tug minimalist muab faib daws, frameless series iav partition system muab cov lus teb.

Nrog lub glazing tuav nyob rau hauv ib puag ncig thav duab uas tsis xav tau rau ntsug aluminium framing, ib tug pob tshab thiab qhib chav yog tsim. Aluminium profiles nrog hmoov coated los yog anodized tiav yog ua hauj lwm raws li kab rov tav thiab ntsug kev sib txuas rau lub tsev qauv, iav thiab iav sib koom ua ke los ntawm cov nplaum tshwj xeeb.

1) Cov kab huv huv thiab pom qhov pom tseeb

2) Flush ib leeg lossis ob chav glazing

3) Frameless structural glazing siv txoj kev

4) Cov iav thiab iav sib koom ua ke los ntawm cov nplaum tshwj xeeb

5) Phab ntsa thickness 108 hli, yaug nrog cov phab ntsa thiab cov qhov rooj

6) Venetian blinds tuaj yeem ua ke hauv nruab nrab hauv ob chav glazing

7) Adjustable accessories nyob rau hauv lub hauv paus ncej rau leveling nyiaj

8) Cov ntawv pov thawj suab rwb thaiv tsev rau iav phab ntsa STC txog 48 dB

Tsim nta	Frameless panoramic muab faib system
Series	108 series frameless iav muab faib
Txheej	Ib/ob iav
iav thickness	12 hli
Daim ntawv thov	Chaw ua haujlwm thiab chav sib tham
Vaj huam sib luag thickness	108 hli
Buil-in qhov rooj	Ib qho iav thiab ob chav glazed qhov rooj, cov qhov rooj ruaj khov
Saib	Pob tshab, xim los yog frosted iav, blinds intergrated ntawm cov iav panels
Noise txo coefficient	TSI 48 db
Qhov Rooj Accessories	Electronic xauv muaj

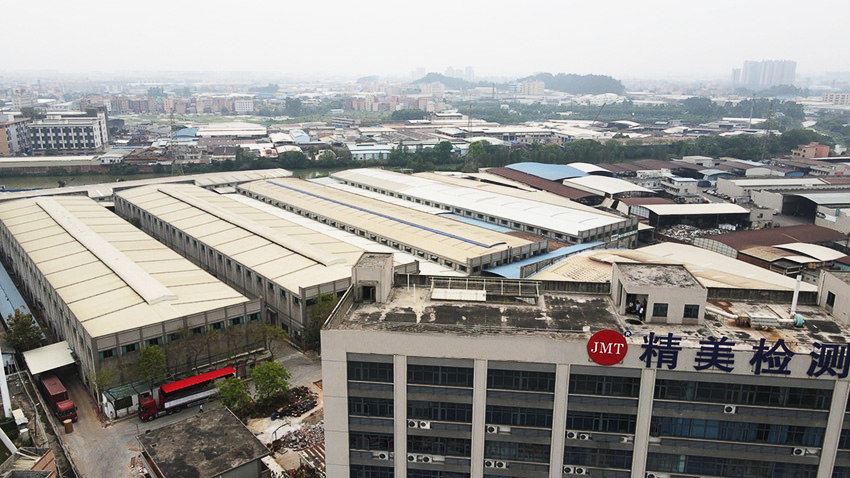

Hais txog peb

Foshan Ivy Tsev Khoom Co., Ltd txiav txim siab kev tsim kho tshiab raws li tus ntsuj plig ntawm lub tuam txhab, uas tsav peb los tsim cov khoom tshiab txhua xyoo. Tshwj xeeb tshaj yog rau lub tswv yim zoo los ntawm peb cov neeg siv khoom, peb yuav txhawb nqa raws li peb tuaj yeem pab ua kom lawv tuaj yeem muaj tseeb.

Tsis tas li ntawd, txij li thaum peb muaj peb tus kheej lub qhov rooj thiab qhov rais Hoobkas, uas yog zoo ntawm hom aluminium qhov rooj thiab qhov rais, aluminium rooj tog, da dej enclosure thiab hniav ntaub thaiv phab ntsa, peb ua tau zoo heev technical support.

Peb tau cog lus rau kev ua haujlwm zoo, kev pabcuam tshaj lij thiab tus nqi zoo txhua lub sijhawm, Peb sov siab txais tos koj rau kev sib cuag. Cia siab rau peb txoj kev koom tes nyob ze thiab yeej-yeej nyob ze yav tom ntej.

FAQ

Q: Ntev npaum li cas thiab yuav tau txais cov qauv ntawm peb li cas?

A: 1) Yog tias koj xav tau qee cov qauv los kuaj, peb tuaj yeem ua raws li koj qhov kev thov, thov muab peb PDF lossis AI rau Kev Ua.Thaum tus qauv nqi tuaj yeem rov qab tau yog tias kev txiav txim tau lees paub thiab QTY nce mus txog 5000pcs.

2) Lub sijhawm ua qauv: txog 7-15hnub

3) Kev thauj mus los ntawm cov qauv: cov khoom thauj nyob ntawm qhov hnyav thiab ntim loj thiab koj cheeb tsam.

Q: Ntev npaum li cas thiab yuav tau txais cov qauv ntawm peb li cas?

2) Lub sijhawm ua qauv: txog 7-15hnub

3) Kev thauj mus los ntawm cov qauv: cov khoom thauj nyob ntawm qhov hnyav thiab ntim loj thiab koj cheeb tsam.

Q: Koj muaj xim dab tsi?

A: Xim muaj los ntawm peb cov xim swatch lossis cov qauv xim tiag

Q: Koj puas tuaj yeem ua lub qhov rooj raws li peb daim duab?

A: Tau kawg peb tuaj yeem.Tsuas xa tuaj rau peb daim duab kos thiab yuav sib tham txog qhov nthuav dav tom qab.Yog tias peb tsis tuaj yeem ua tiav, peb yuav qhia sai sai.

Q: Peb yog cov wholesaler me me, koj puas kam txais kev txiav txim me me?

A: Kev txiav txim me me tau txais, peb vam tias tuaj yeem loj hlob nrog koj ua ke.
