Kev Taw Qhia:

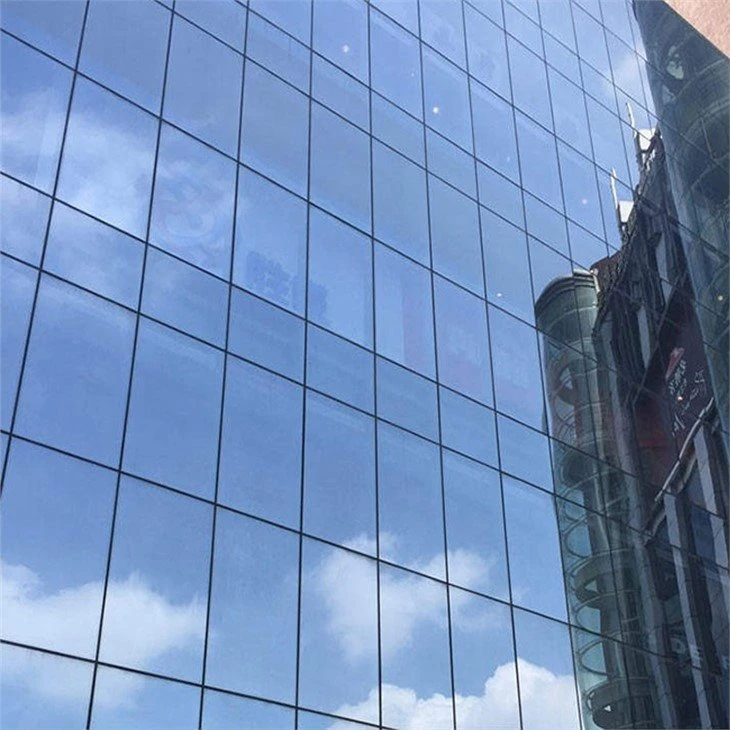

Semi-hidden thav duab kab hlau rhuav phab ntsa tau muab faib ua ob hom: kab rov tav thiab ntsug, lossis ntsug thiab kab rov tav. Tsis muaj teeb meem zoo li cas ntawm cov ntaub thaiv phab ntsa, ib sab yog sib txuas nrog cov txheej txheem nplaum los tsim cov iav los ua ke, thiab lwm qhov sib txuas yog sib sau ua ke nrog aluminium alloy inlaid groove iav.
Khoom Paub meej
Qhov ntev | Customized, Raws li tus neeg thov kev thov tshwj xeeb. |
Khoom siv profile | Aluminium alloy profile Profile Phab ntsa thickness: 2.5/3.0mm Xim: raws li RAL xim atla |
iav Option | Hollow iav, laminated iav, tempered iav, Low-E iav, ntab iav, reflective iav ib glazing / ob chav glazing Ib : 6/8/10/12mm Ob chav: 5 ntxiv 9A / 12A ntxiv 5 6 ntxiv 9A / 12A ntxiv 6 8 ntxiv rau 9A/12A ntxiv rau 8, 6.38mm, 8.76mm 10.76mm 11.52mm thiab lwm yam Xim: ntshiab, ford xiav reflective, ntsuab reflective, LOW-E. lwm yam lwm yam iav thickness raws li tus neeg yuav tsum tau muaj. |
Kho vajtse | Kov, xauv, sealing sawb, txhuam pob khawm, thiab lwm yam. Zoo siab ua nyob rau hauv Suav teb / Lub teb chaws Yelemees (ROTO) |
Silicon | Suav lag luam sab saum toj |
lwm yam ntaub ntawv | Hluav taws kub tiv thaiv board, Foam qws, steel qhov chaw. ob-sided nplaum daim kab xev, weatherproof sealants |
Ua tiav | Hmoov coated, Fluorocarbon, thiab Anodizing |
Qhov chaw siv tau | Tsev kawm ntawv, tsev noj mov, tsev lag luam thiab chaw nyob thiab lwm yam |
Ntim | Bubble bag plus Ntoo ncej |
Qhov zoo:
1. Cov ntaub thaiv phab ntsa ib nrab zais tau zoo heev los tiv thaiv kev vibration, vim hais tias ib feem ntawm cov tswj vaj huam sib luag yog ua ke nrog cov khoom siv hlau nrog cov kua nplaum uas tiv taus huab cua. Cov kua nplaum tiv thaiv huab cua muaj qhov zoo ductility thiab tuaj yeem zom thiab nqus kev co thiab deformation.
2. Lub semi-pob ntseg kab hlau rhuav phab ntsa muaj cov txiaj ntsig zoo ntawm kev kho kom zoo nkauj. Vim nws cov xim ci, nws yog crystal ntshiab thiab translucent li spar. Qhov saum npoo ntawm cov ntaub thaiv phab ntsa semi-hiden tsis tshua muaj cov khoom siv hlau, thiab cov iav laminated muaj cov kav ntev thiab zoo nkauj heev.
Daim ntawv thov scene:
Cov phab ntsa semi-hidden curtains feem ntau yog siv hauv cov tsev nruab nrab thiab siab.

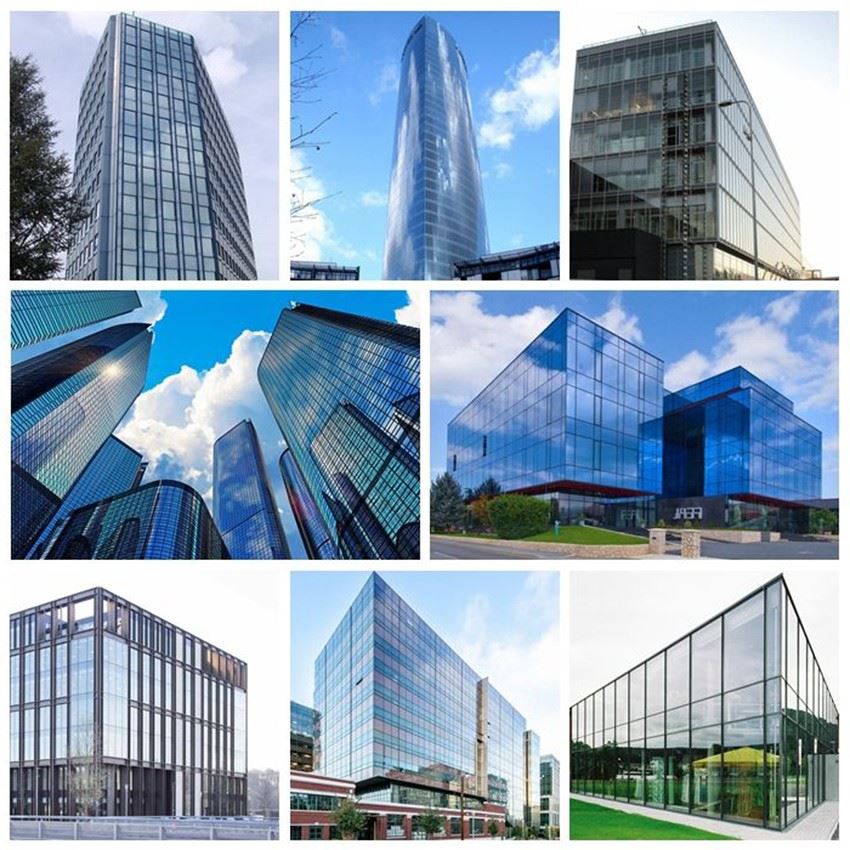

Case Show
Cov txheej txheem installation
Vertical zais kab rov tav tsis zais
Txoj Kev A:
Nws yog kho cov iav coated nyob rau hauv inlaid zawj ntawm aluminium alloy profile nyob rau sab saum toj thiab hauv qab, tsim qhov sib txawv ntawm cov iav thiab ntsug bar nto, thiab tom qab ntawd sau qhov sib txawv zawv zawg nrog cov txheej txheem nplaum ntawm qhov chaw los tsim ib txoj kab ntsug. structural adhesive iav los ua ke system. Feem ntau, nws yog txwv rau cov tsev uas tsis muaj qhov sib txawv ntawm lub tsev thiab cov txheej txheem aluminium alloy, thiab yuav tsum tsis txhob siv tshwj tsis yog tias tsim nyog kiag li.
Txoj kev B,
Cov iav yog muab tso rau ntawm lub iav thav duab nrog kev teeb tsa grooves ntawm ob sab ntsug, thiab sab ntsug ntawm lub iav thav duab yog tsau rau ntawm tus ncej ntsug ntawm aluminium alloy thav duab system nrog cov khoom kho; Lub sab sauv thiab sab kab rov tav ntawm cov iav yog tsau nyob rau hauv inlaid zawj ntawm lub zawj beam ntawm aluminium alloy ncej. Kev sib txuas ntawm cov iav thiab cov ntug ntsug ntawm lub iav thav duab yog ua tiav hauv kev cob qhia tshwj xeeb hauv lub Hoobkas thiab tom qab ntawd thauj mus rau qhov chaw rau kev teeb tsa. Cov kev sib raug zoo yog guaranteed.
Kab rov tav thiab ntsug tsis pom
Txoj Kev A:
Namely, lub phaj nias yog ntxiv rau kab rov tav lossis ntsug ntug ntawm tag nrho cov duab zais iav kab hlau rhuav phab ntsa los tsim ib qho semi zais ncej kab hlau rhuav phab ntsa nrog kab rov tav lossis ntsug. Cov phaj nias no tsis yog tsuas yog kab rov tav lossis ntsug kho kom zoo nkauj xwb, tab sis kuj yog qhov thib ob fixation ntawm iav.
Txoj kev B,
Cov txheej txheem glazing yog saws. Txoj kev yog los khi lub iav rau lub iav thav duab nrog kev teeb tsa grooves rau sab sauv thiab sab qis. Lub sab sauv thav duab ntawm lub iav thav duab yog txhawb nqa ntawm lub nqaj ntawm aluminium alloy ncej system. Lub thav duab qis yog tsau rau ntawm lub nqaj qis nrog ib qho kho, thaum ntug ntsug yog tsau rau ntawm lub nqaj qis nrog lub phaj nias, thaum lub ntug ntsug yog tsau rau hauv lub khob qhov ntawm lub ntsug bar nrog lub phaj nias, ua ib qho ntev strip ntawm iav cais los ntawm sab saum toj mus rau hauv qab los ntawm ntsug bar nias phaj. Nws tsis raug tso cai txhaj tshuaj nplaum rau ntawm qhov chaw yog tias nws muab zais kab rov tav lossis ntsug.
Hais txog peb

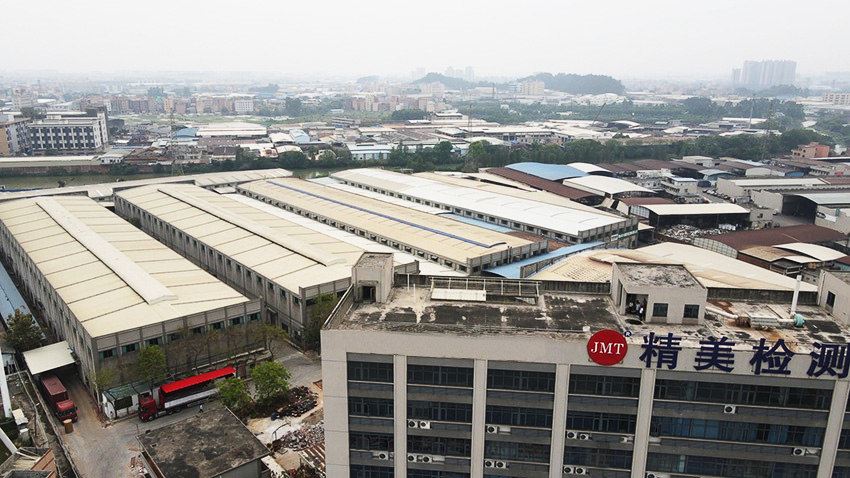

Foshan Ivy Tsev Khoom Co., Ltd txiav txim siab kev tsim kho tshiab raws li tus ntsuj plig ntawm lub tuam txhab, uas tsav peb los tsim cov khoom tshiab txhua xyoo. Tshwj xeeb tshaj yog rau lub tswv yim zoo los ntawm peb cov neeg siv khoom, peb yuav txhawb nqa raws li peb tuaj yeem pab ua kom lawv tuaj yeem muaj tseeb.
Tsis tas li ntawd, txij li thaum peb muaj peb tus kheej lub qhov rooj thiab qhov rais Hoobkas, uas yog zoo ntawm hom aluminium qhov rooj thiab qhov rais, aluminium rooj tog, da dej enclosure thiab hniav ntaub thaiv phab ntsa, peb ua tau zoo heev technical support.
Peb tau cog lus rau kev ua haujlwm zoo, kev pabcuam tshaj lij thiab tus nqi zoo txhua lub sijhawm, Peb sov siab txais tos koj rau kev sib cuag. Cia siab rau peb txoj kev koom tes nyob ze thiab yeej-yeej nyob ze yav tom ntej.
FAQ
Q1: Koj tus MOQ yog dab tsi?
A: Feem ntau, tsis muaj MOQ rau peb, Sanjing iav yuav muab luv nqi rau koj yog tias muaj ntau ntxiv.
Q2: Koj puas tuaj yeem xa kuv cov qauv mus kuaj koj qhov zoo?
A: Kom paub meej, peb tuaj yeem xa cov qauv dawb (tshwj tsis yog tshwj xeeb sib sib zog nqus ua iav aluminium alloy profile,) rau koj txhua lub sijhawm. peb yuav rov qab them tus nqi xa tuaj rau koj thaum peb pib ua lag luam.
Q4: Koj lub sijhawm xa khoom yog dab tsi?
A: 25-35 hnub tom qab tso nyiaj thiab kos duab paub tseeb.
Q5: Koj lub warranty yog dab tsi? Peb yuav ua li cas thaum muaj teeb meem?
A: 10 xyoo kev lav zoo yog muab, suav nrog cov ncej unfading lossis tev tawm, kho vajtse thiab cov khoom siv ua haujlwm kom raug raws li kev ua haujlwm raug.
Q6: Koj yuav muab kev pabcuam zoo li cas?
A: Peb muaj peev xwm muab kev tsim vaj tsev nrog rau kev saib xyuas los qhia kev teeb tsa peb lub qhov rais thiab qhov rooj.
