Khoom Paub meej:
Lub npe: | Aluminium vaj huam sib luag curtain phab ntsa |
Khoom siv: | Aluminium |
Xim: | Grey / dub / xuab zeb grey / dawb los yog lwm yam xim customized |
Thickness: | 3. 0mm--7 0mm, thiab lwm yam |
Nto tiav | 1. hmoov txheej |
2. electrophoresis | |
3.heat hloov rau ntoo grain | |
4.PVDF txheej | |
iav | Khoom siv: Ib qho iav, Ob chav iav, tempered iav, ntab iav, iav insulating, reflective iav, laminated iav, low-E iav |
Xim: ntshiab / grey / xiav / frosted, thiab lwm yam | |
Ib leeg: 6mm txog 18mm | |
Ob chav: 6mm plus 12A plus 6mm | |
Kev sib khi | EPDM roj hmab thiab silicone sealant |
Kho vajtse | Suav Hom |
Pob | Kev tiv thaiv ua npuas ncauj ntxiv rau cov ntawv cog lus yas zaj duab xis / thawv / ntoo ntim / Hlau pallet lossis nyob ntawm cov neeg siv khoom tshwj xeeb |
Taw qhia:

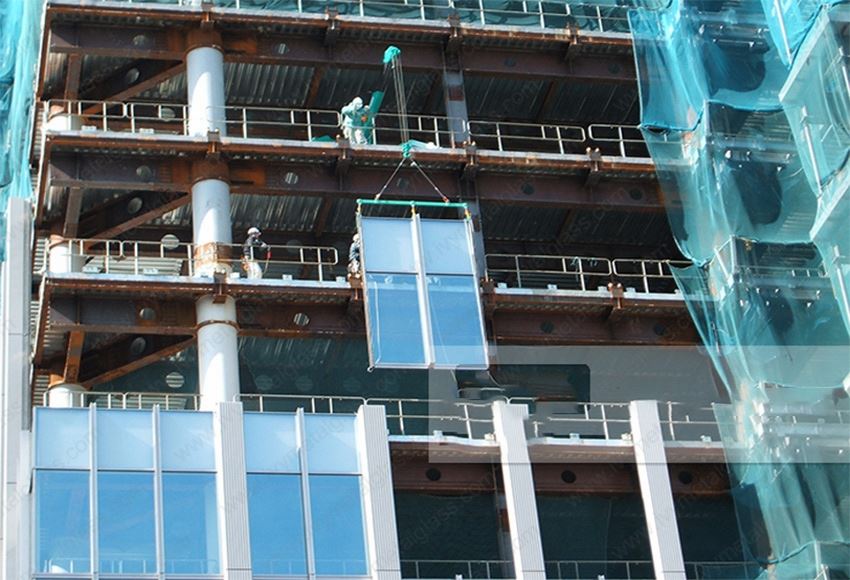

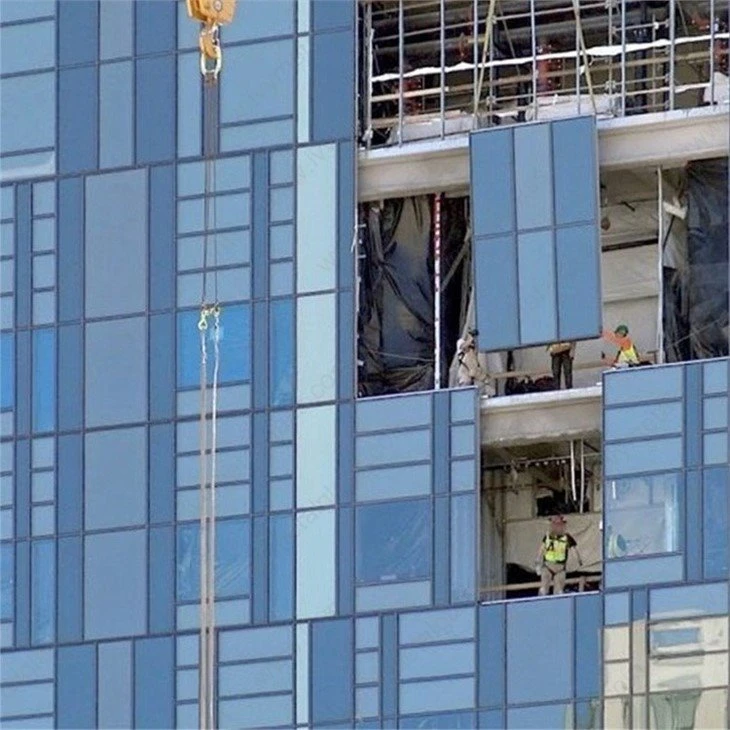

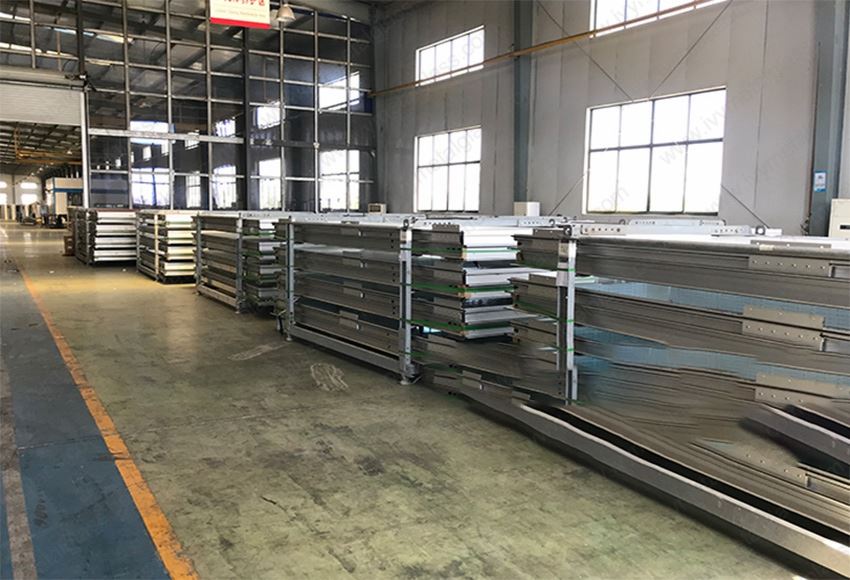

Chav tsev kab hlau rhuav phab ntsa hais txog lub tsev kab hlau rhuav phab ntsa uas tau ua tiav hauv chav tsev ntawm kab hlau rhuav phab ntsa hauv lub Hoobkas los ntawm ntau cov phab ntsa panels thiab thav ntawv.
Hom:
Chav tsev kab hlau rhuav phab ntsa tuaj yeem muab faib ua: chav tsev kab hlau rhuav phab ntsa thiab cov phab ntsa ib nrab chav tsev, tseem hu ua rigid unit curtain phab ntsa.
Nta:
1. Lub tsev kab hlau rhuav phab ntsa daws cov teeb meem dej xau ntawm phab ntsa thaiv phab ntsa
2. Nws yog ib qho yooj yim rau nruab. Nws chav tsev qhov siab yog qhov siab hauv pem teb, qhov dav feem ntau yog li 1.2 meters txog 1.5 meters, thiab kev sib kis tau yooj yim.
3. Lub sijhawm ua haujlwm engineering yog luv thiab yooj yim los tswj.
4. Nws yog ua tiav thiab tsim nyob rau hauv lub Hoobkas, uas tuaj yeem txo cov nqi tsim kho ntawm cov neeg ua haujlwm ntawm qhov chaw.
5. Piv nrog cov kab hlau rhuav phab ntsa, cov dej tsis sib haum ntawm chav tsev kab hlau rhuav phab ntsa tuaj yeem ua tiav ob txheej txheej sealing.
6. Cov pob qij txha ntawm chav tsev kab hlau rhuav phab ntsa panels raug kaw nrog tshwj xeeb huab cua-resistant roj hmab strips kom ntseeg tau tias nws tus kheej ntxuav ntawm cov ntaub thaiv phab ntsa thiab txo qhov kev pheej hmoo ntawm cov kab mob.
Lub zog zoo heev
- system U-tus nqi qis rau 0.8 W/㎡.K
Tag nrho cov ntaub thaiv phab ntsa thermal kev ua tau zoo yog ib qho kev ua haujlwm ntawm glazing infill vaj huam sib luag, thav duab, kev tsim kho tom qab opaque (spandrel thiab kem npog) thaj chaw, thiab cov ntsiab lus ib puag ncig. Peb muaj tshwj xeeb tsim kab hlau rhuav phab ntsa system. Qhov system thermal rwb thaiv tsev U-tus nqi qis rau 0.8 W/㎡.K
Chav tsev kab hlau rhuav phab ntsa muaj lub hom phiaj tseem ceeb ntawm kev ua kom huab cua thiab dej tawm ntawm lub tsev, qhov tseem ceeb ua raws li ob qho tib si tsis muaj thiab insulator. Tsis zoo li cov qhov rais tsis txuas ntxiv, uas yog cov chav me me thiab tuaj yeem tso siab rau qib siab ntawm sill flashings kom ntes cov ncej kaum sab xis, kab hlau rhuav phab ntsa npog qhov loj ntawm phab ntsa yam tsis muaj sill flashings ntawm txhua qhov qhib glazed. peb muaj tshwj xeeb patented ntaub thaiv phab ntsa system dej nkag mus rau siab rau 1000 Pa.
Peb muaj cov neeg tsim qauv tsim muaj zog uas tuaj yeem ua rau kev suav ua tiav thiab cov ntaub ntawv meej, uas muaj ntau yam kev zoo nkauj variations tso cai rau architects siv ib qho kev sib xyaw ua tiav, infills, sab nraud feature caps thiab glazing specification.
* Zog Efficiency U-tus nqi qis rau 0.8 W/㎡.K
* Dej nkag siab ua haujlwm siab txog 1000 Pa
* Durable Hmoov Txheej Warranty rau 20 xyoo
* Glazing Unit Nyhav max mus rau 1,000 kg
* Glazing Thickness ntawm 4mm mus rau 60mm
* Suab Resistance Rw rau 68 dB

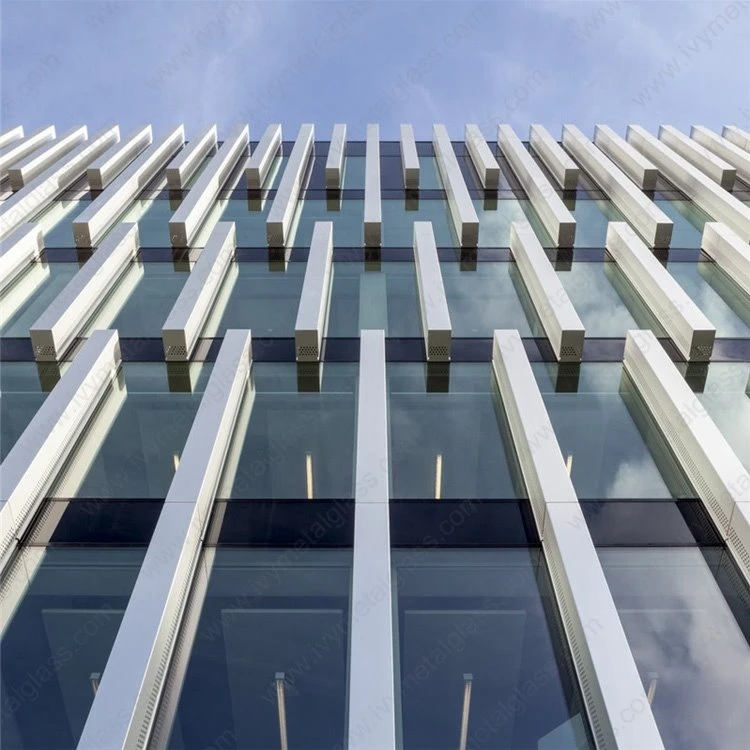

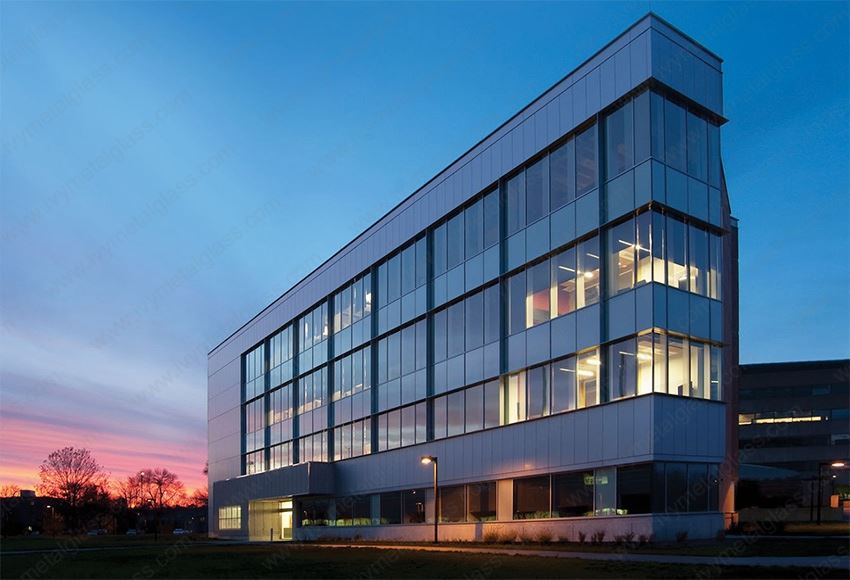

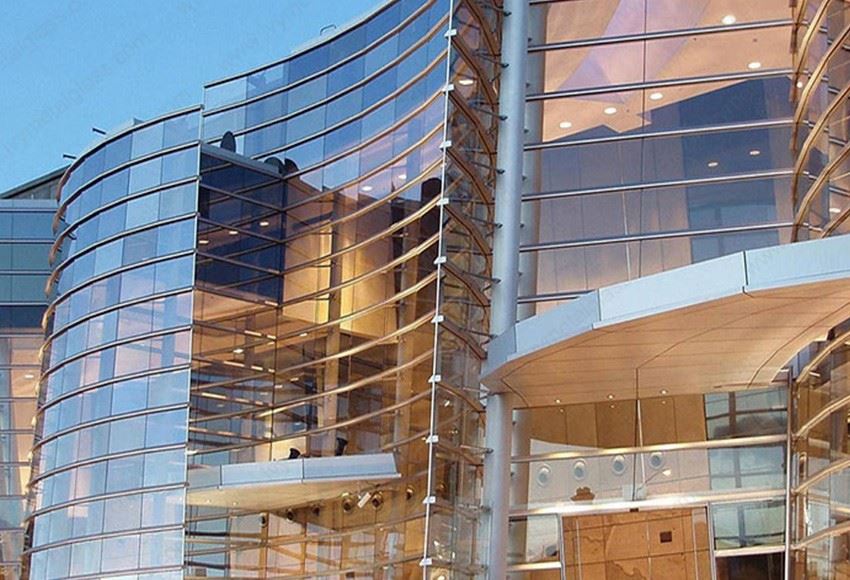

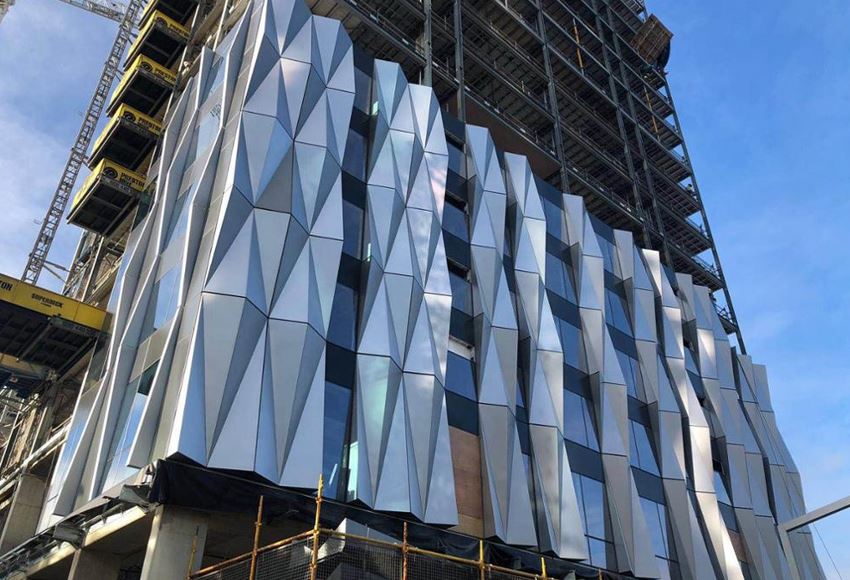

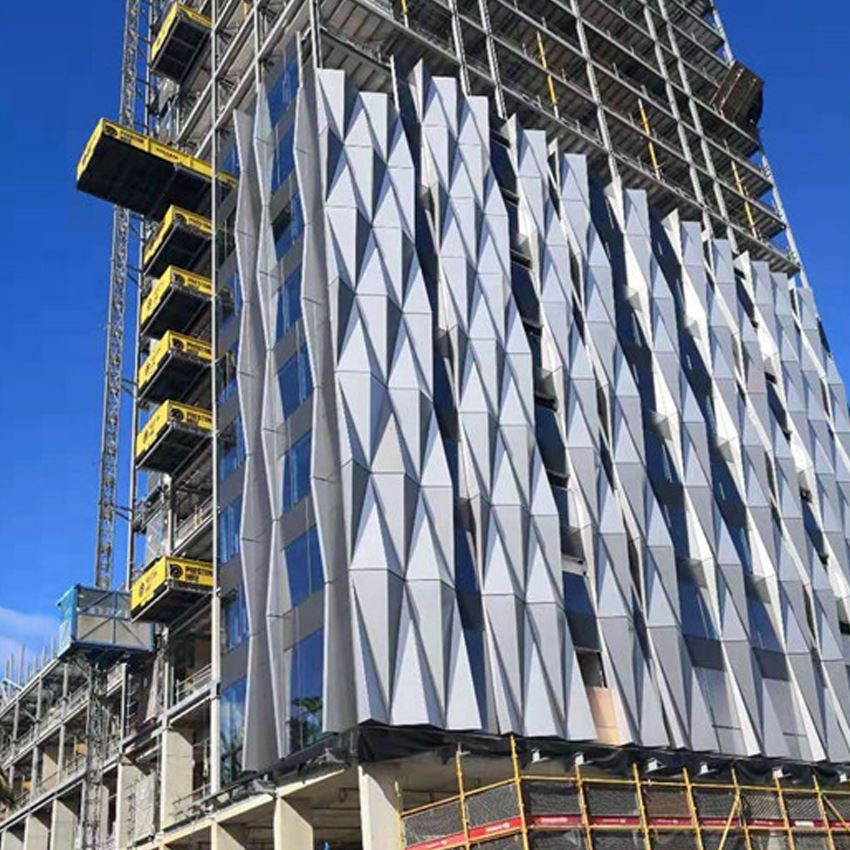

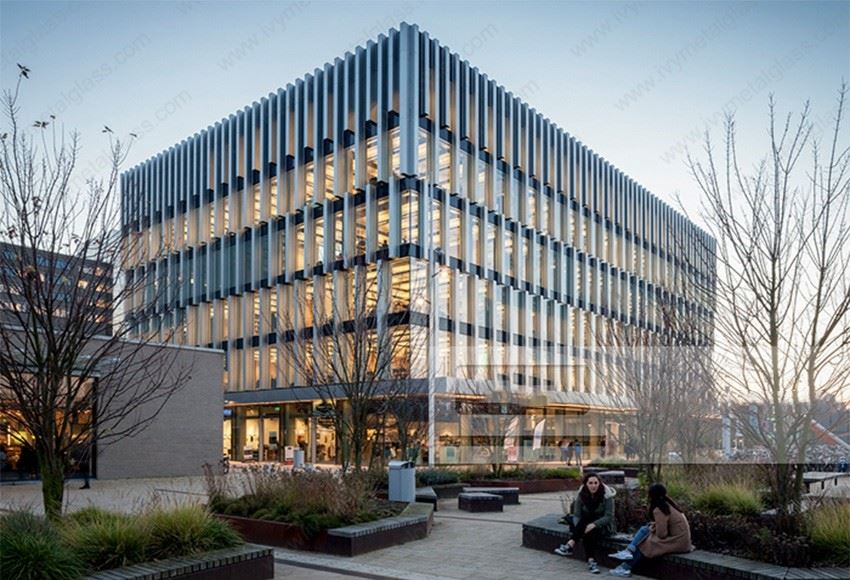

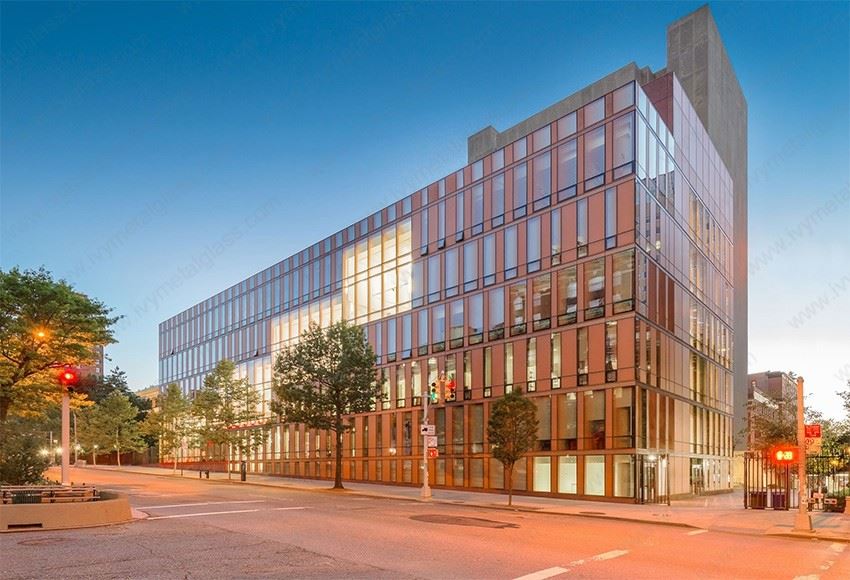

Case Show

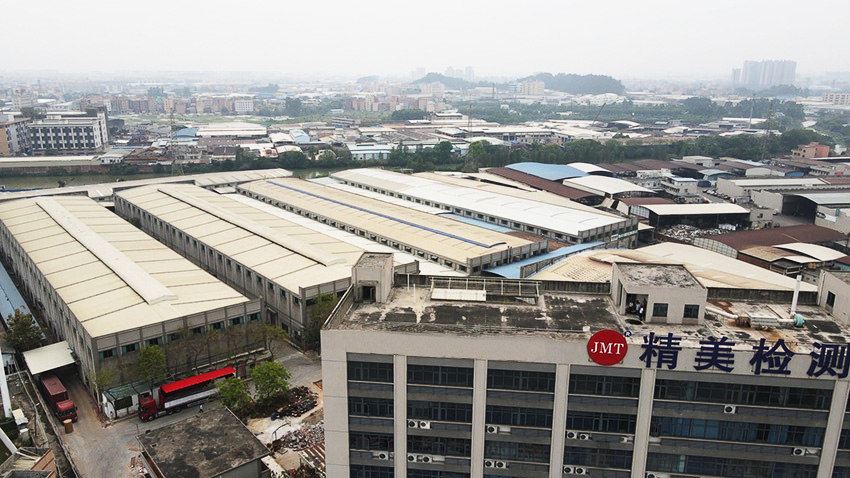

Hais txog US
Foshan Ivy Tsev Khoom Co., Ltd. specializes nyob rau hauv zus tau tej cov aluminium qhov rooj thiab qhov rais systems, xws li txhuas folding qhov rooj, zawv zawg qhov rooj, casement qhov rooj, zawv zawg qhov rais, casement qhov rais, sunshade qhov rais, qaij thiab flip qhov rais, sab saum toj / ob chav dai. qhov rais thiab qhov rais tsau. Peb kuj muaj Lwm yam engineering tej yaam num, xws li cov ntaub thaiv phab ntsa, shutters, chav da dej, txhuas txee, guardrails, thiab lwm yam. Vim peb cov ntaub ntawv zoo, zoo heev handwork thiab cim tsim thiab innovation, peb cov khoom tau txais tos thiab warmly txais tos nyob rau hauv ntau lub teb chaws. .
FAQ
Q: Koj puas kam txais cov qauv tsim thiab loj?
A: Yog, paub meej. Tus tsim thiab loj tag nrho yog raws li cov neeg siv khoom
Q: Cov nqe lus them nqi nyiam yog dab tsi?
A: TT.
Q: Koj muaj xim dab tsi?
A: Xim muaj los ntawm peb cov xim swatch lossis cov qauv xim tiag
Q: Koj lub ntim ntim li cas?
A: nrog lub thawv thiab EPE ua ntej thiab tom qab ntawd muab tag nrho cov qhov rais ntawm cov ntoo pallets thiab kho nrog EPE kom nws tsis txav mus rau hauv lub thawv
Q: Kuv tuaj yeem paub koj tus nqi li cas?
A: Tus nqi yog raws li cov neeg yuav khoom tshwj xeeb, yog li thov muab cov ntaub ntawv hauv qab no los pab peb hais nqe pes tsawg rau koj
1) Lub khw kos duab / qhov rai lub sijhawm los qhia qhov ntev ntawm lub qhov rais, kom muaj nuj nqis thiab hom,
2) Xim xim;
3) Hom iav thiab tuab (ib zaug lossis ob npaug lossis laminated lossis lwm tus) thiab xim (ntshiab, tinted, reflective, LOW-E lossis lwm tus, nrog Argon lossis tsis muaj
